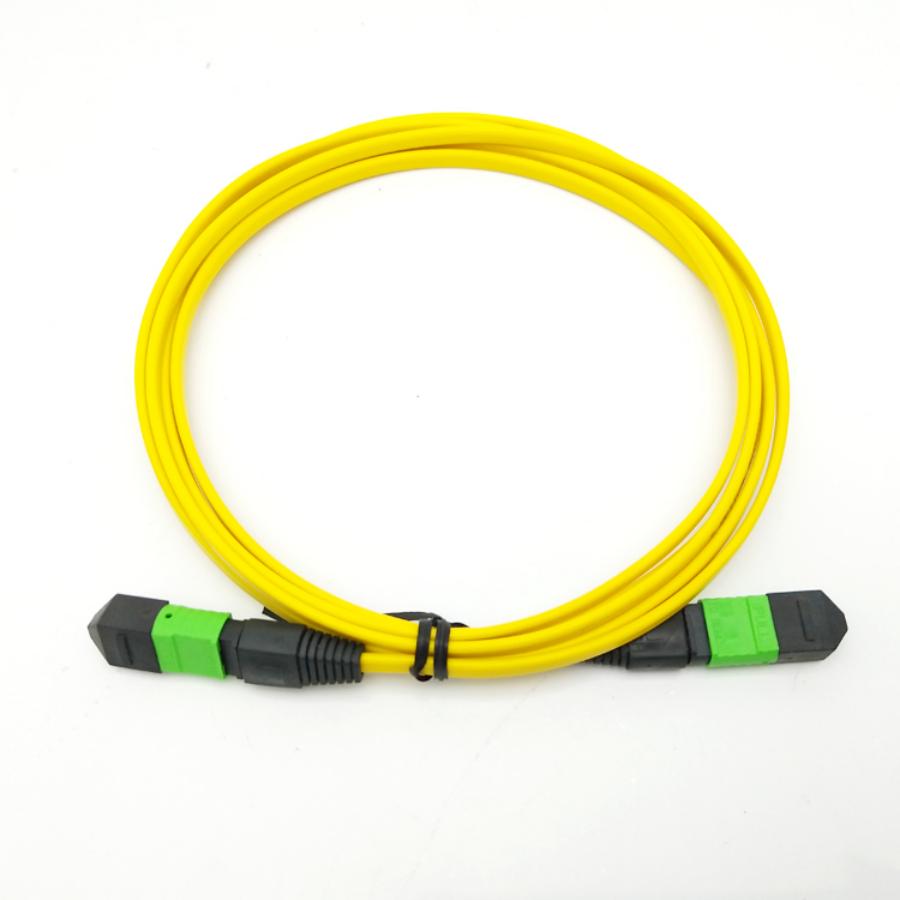

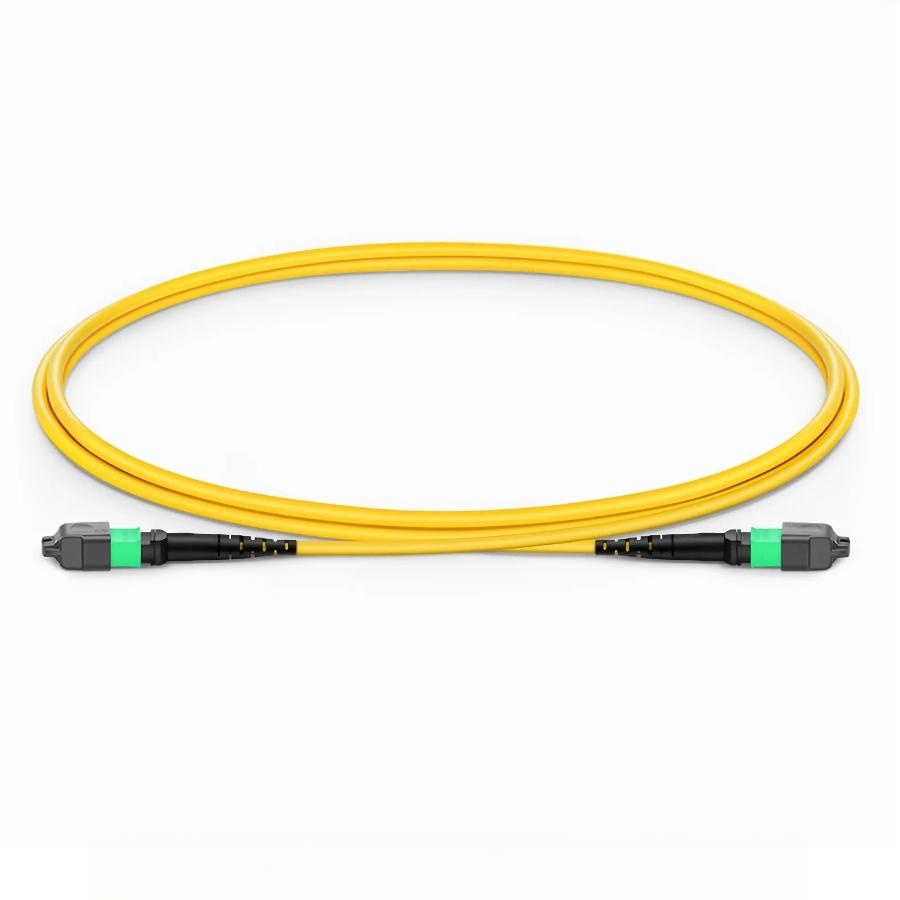

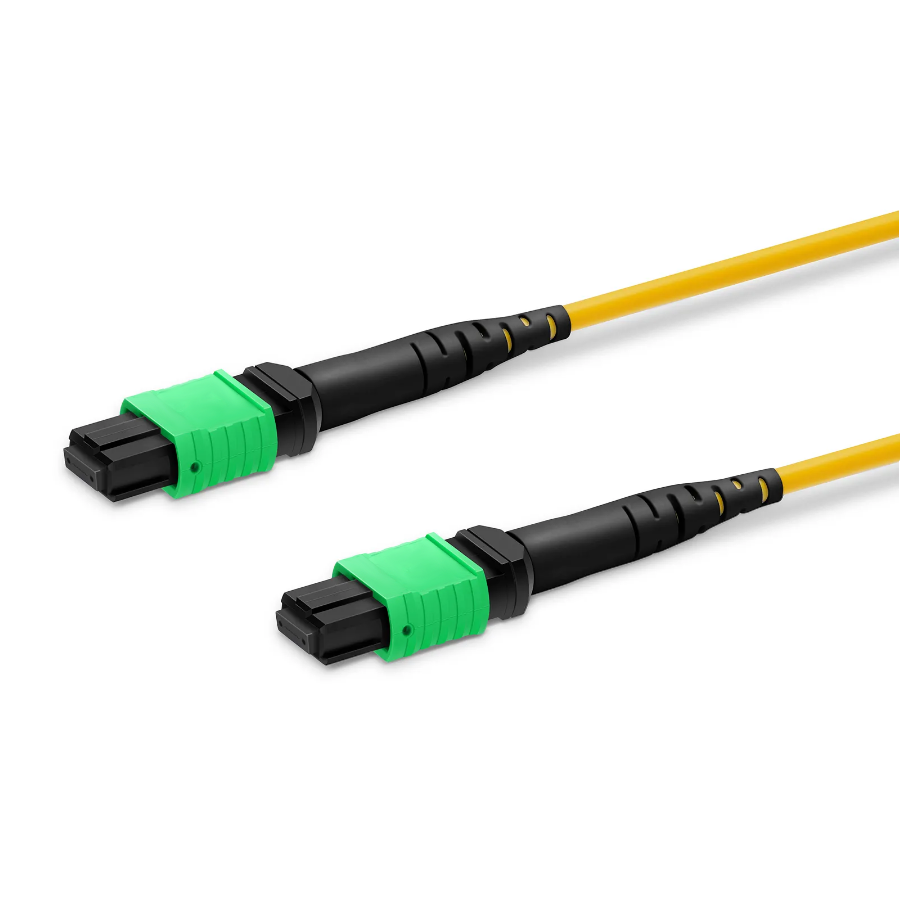

MPO-12 APC OS2 12 Fiber Cable

Product Introduction:
MPO Connector with Optimal 0.35dB Low IL
G.657.A1 Bend Insensitive Fiber with 10mm Min. Bend Radius
OFNP Fire Safety-Rated for Use in Plenum Air Spaces

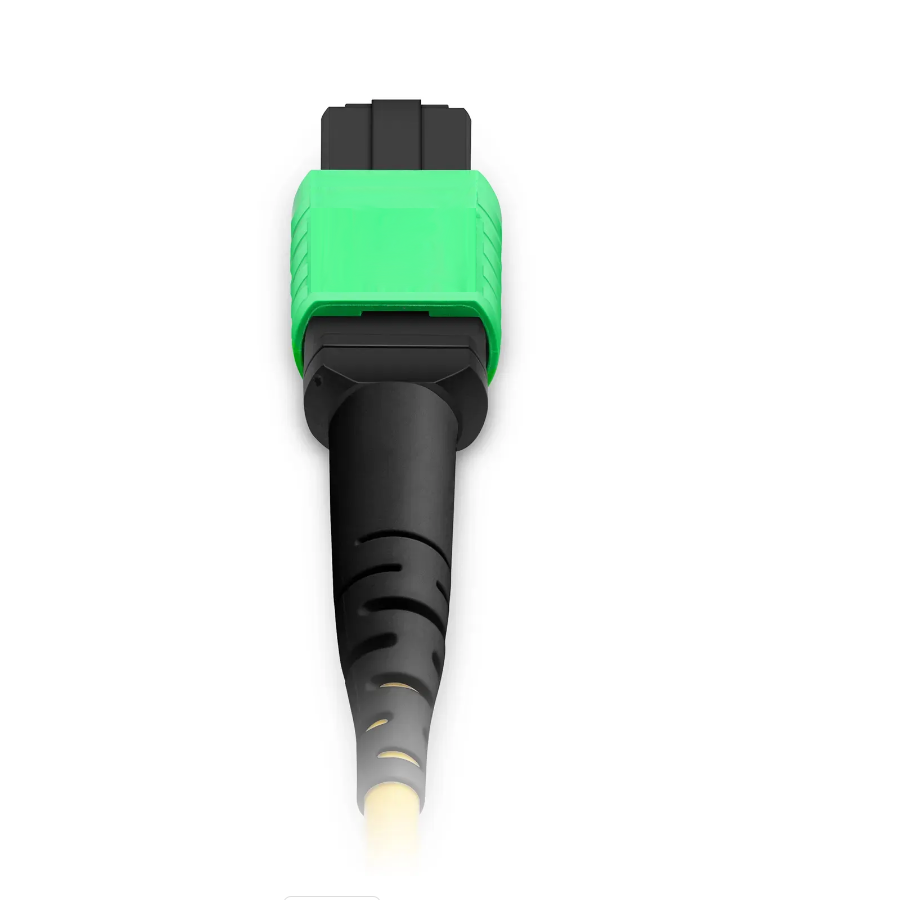

Color-Coded Connector Boots for Easy Identification
Typically Used for Patching Within a Cabinet
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Connector Gender:
Side A/B Fiber Polish:
Cable Polarity:
Cable Length:
Online Inquiry
Product Details

MPO  jumpers, allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunk cables. They are typically used for patching within a cabinet. MPO cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Due to the MPO-12 also supporting MPO-8 fiber systems, it is also ideal for 8-fiber parallel single mode optical transceivers applications, such as 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4, and 400G QSFP-DD DR4/XDR4 optics connection.

Specifications

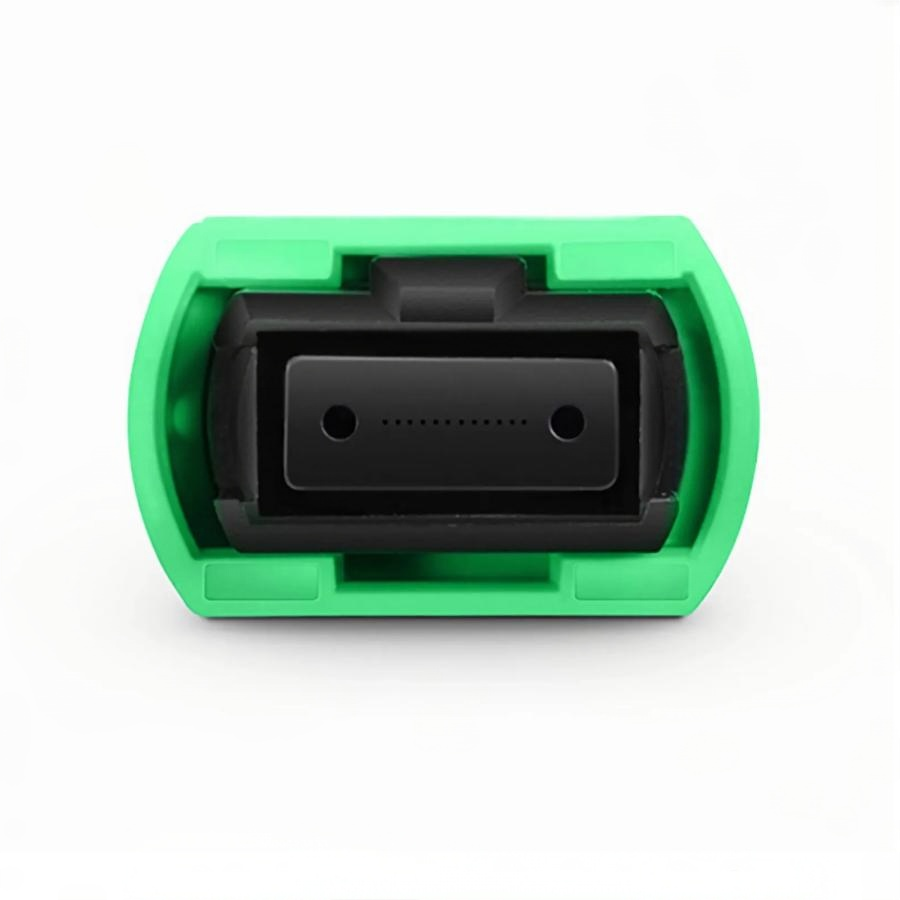

Connector A
MPO Female (Non-Pinned)
Connector B
MPO Female (Non-Pinned)
Polish Type
APC to APC
Glass Fiber
G.657.A1
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Fiber Count
12 Fibers
Polarity
Type B
Cable Outside Diameter (OD)
3.0mm
Cable Jacket
Plenum (OFNP)
Min. Bend Radius (Optical Fiber)
10mm
Min. Bend Radius (Fiber Cable)
10/5D (Dynamic/Static)
Connector Durability
500 times
Tensile Strength
80/240N (Long/Short Term)
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥60dB
Attenuation at 1310nm
≤0.35dB/km
Attenuation at 1550nm
≤0.21dB/km
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)
