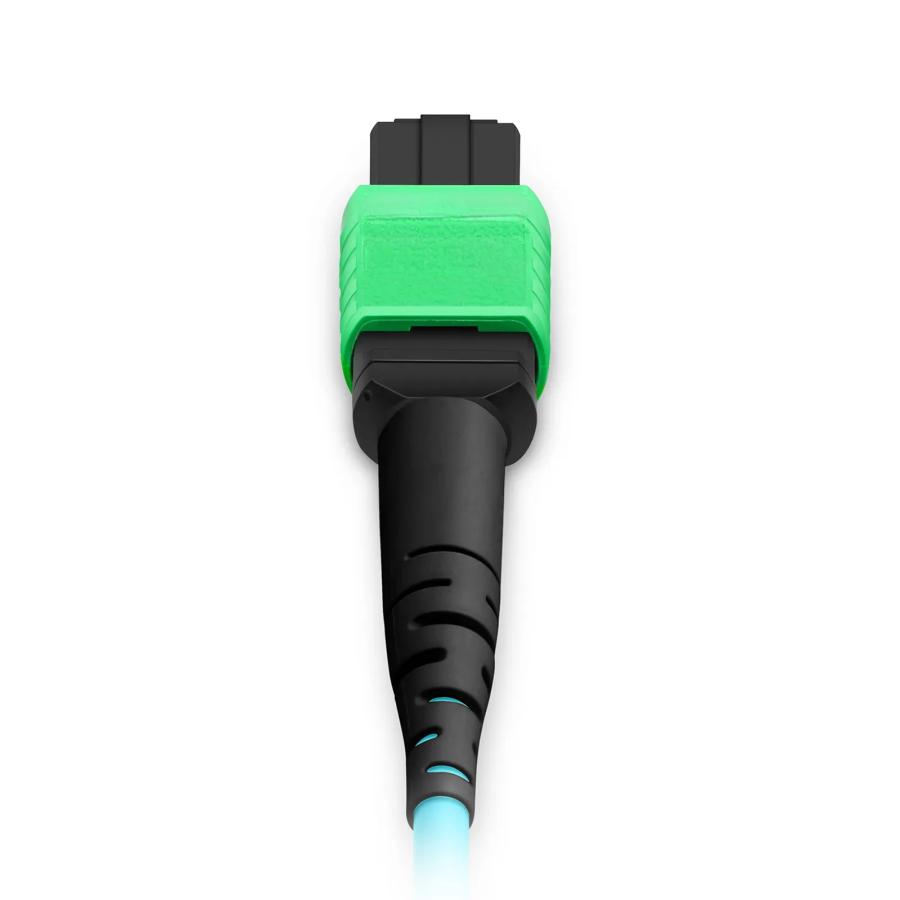

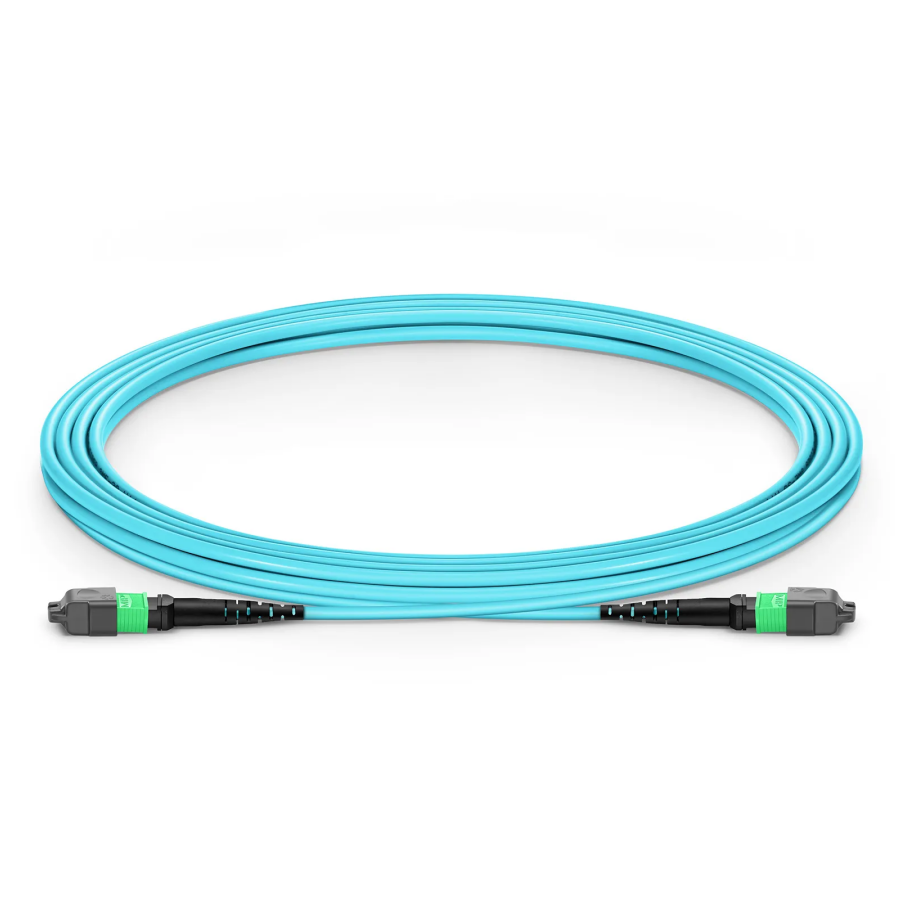

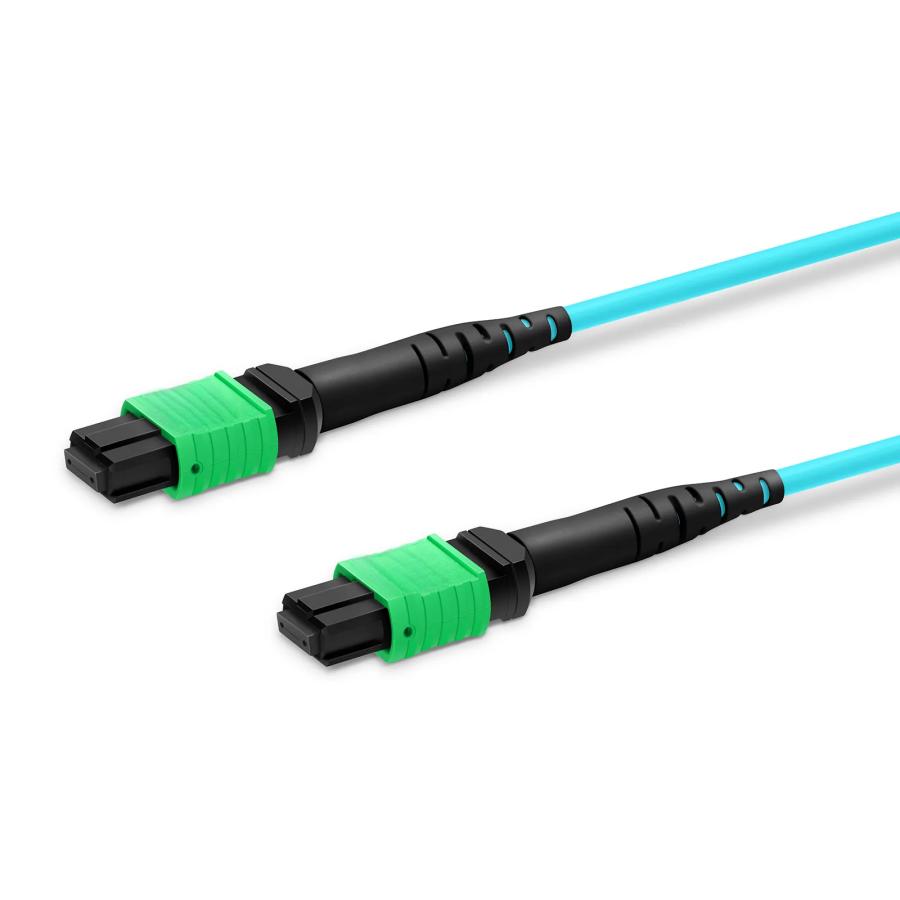

MPO-12 APC/UPC OM3 8 Fiber Cable

MPO Connector with Optimal 0.35dB Low IL
Bend Insensitive Fiber with 7.5mm Min. Bend Radius
8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
OFNR/LSZH Fire Safety-Rated Combats Fire and Toxic Smoke in Riser Pathways
Designed for Linking Twin-port OSFP and Single-port OSFP and QSFP112 Transceivers
Support InfiniBand, Ethernet and NVLink Protocols
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Connector Gender：
Side A/B Fiber Polish：
Cable Polarity：
Cable Length：
Online Inquiry
Product Details

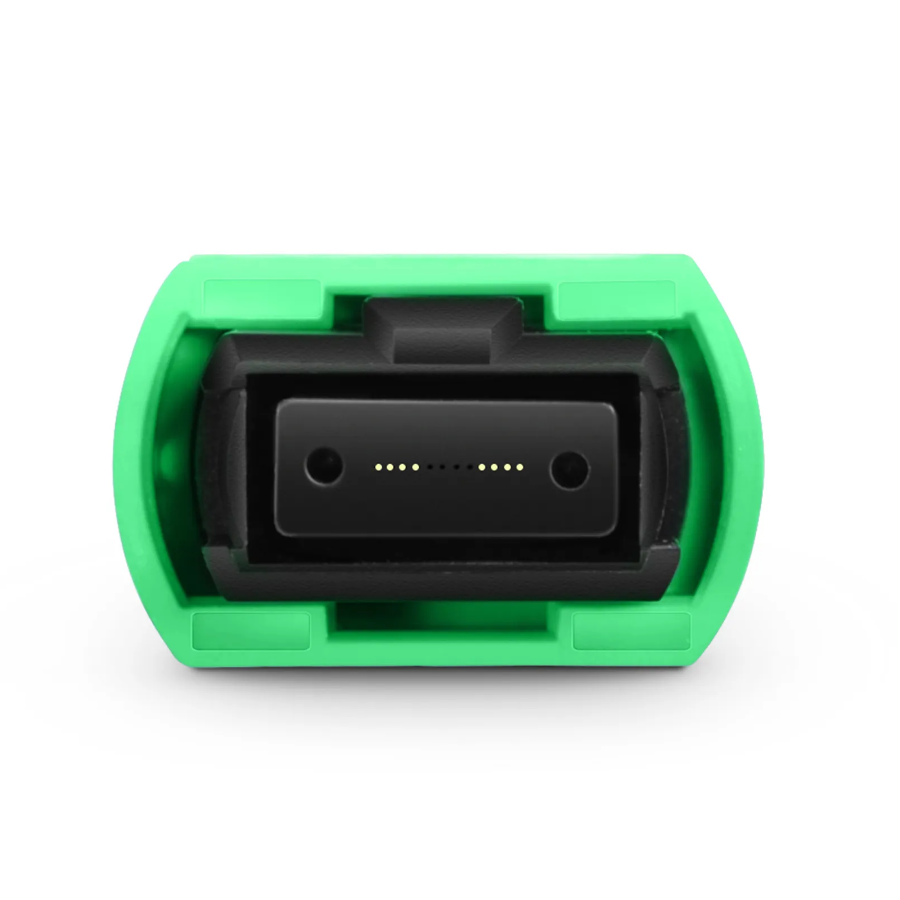

The MPO-12 APC (Female) OM3 cable uses 8 active fibers to transmit light and 4 inactive fibers as strength members. The APC end has an 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting the signal quality.

It is designed for linking InfiniBand and Ethernet multimode twin-port OSFP and single-port OSFP and QSFP112 transceivers together in data center high-speed fiber links. The typical use case is linking twin port OSFP switches to each other, and to ConnectX-7® network adapters or BlueField-3® Data Processing Units (DPUs) in computing and storage servers.

Specifications
Connector A
MPO Elite Female (Non-Pinned)
Connector B
MPO Elite Female (Non-Pinned)
Polish Type
APC to APC
Glass Fiber
Bend Insensitive Fiber
Fiber Mode
OM3 50/125μm
Wavelength
850/1300nm
Fiber Count
8 Fibers
Polarity
Type B
Cable Outside Diameter (OD)
3.0mm
Cable Jacket
Dual Rated (OFNR/LSZH)
Min. Bend Radius (Optical Fiber)
7.5mm
Min. Bend Radius (Fiber Cable)
20/10D (Dynamic/Static)
Connector Durability
500 times
Tensile Strength
80/240N (Long/Short Term)
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥45dB
Attenuation at 850nm
≤2.3dB/km
Attenuation at 1300nm
≤0.6dB/km
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)
