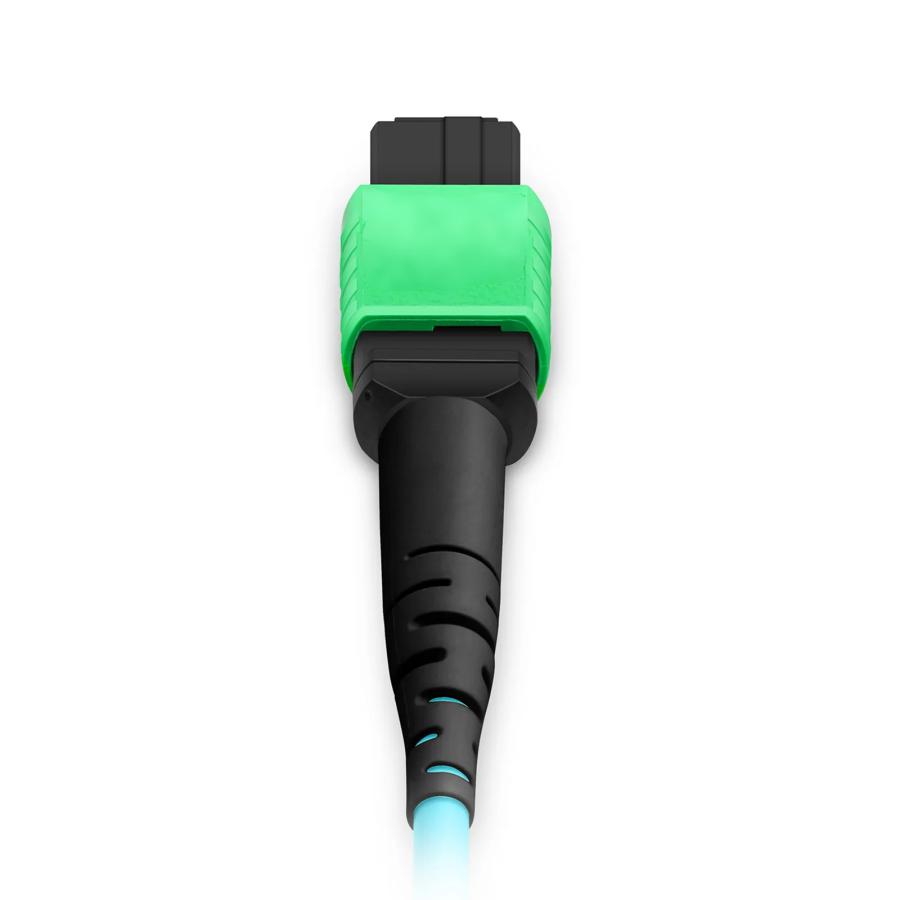

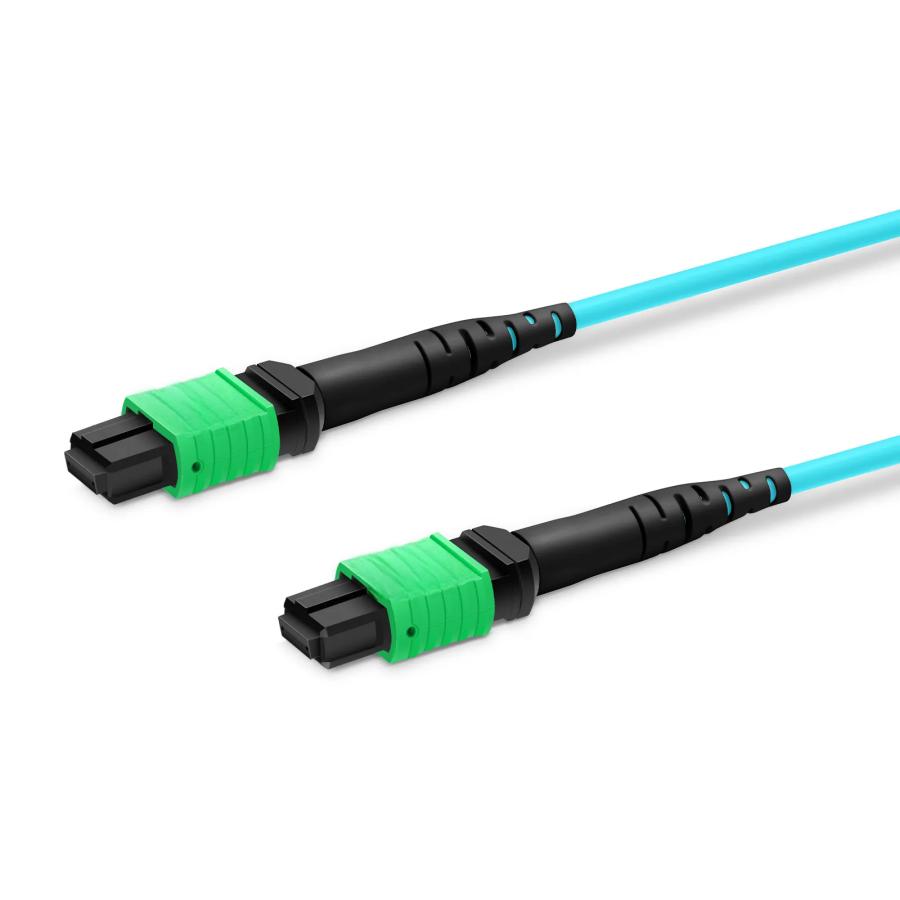

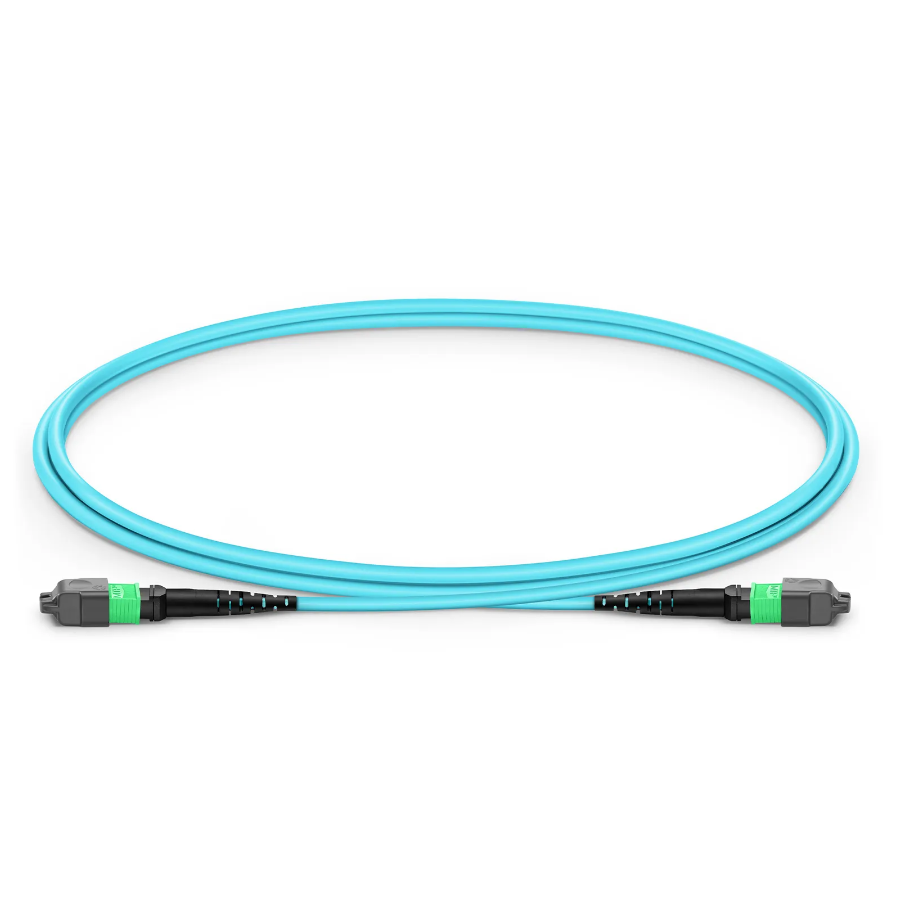

MPO-16 APC OM3 16 Fiber Cable

MPO Connector with Optimal 0.35dB Low IL
Bend Insensitive Fiber with 7.5mm Min. Bend Radius
8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Designed for Linking 400G QSFP-DD and OSFP Transceivers
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Connector Gender：
Side A/B Fiber Polish：
Cable Polarity：
Cable Length：
Online Inquiry
Product Details

The MPO-16 jumper is factory-terminated and tested to deliver verified optical performance and reliability, with an MPO-16 APC end featuring an 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting signal quality.
It is ideal for 16-fiber parallel multimode optical transceiver applications, such as 400G QSFP-DD/OSFP SR8 optics transmission in data center high-speed fiber links.

Specifications
Connector A

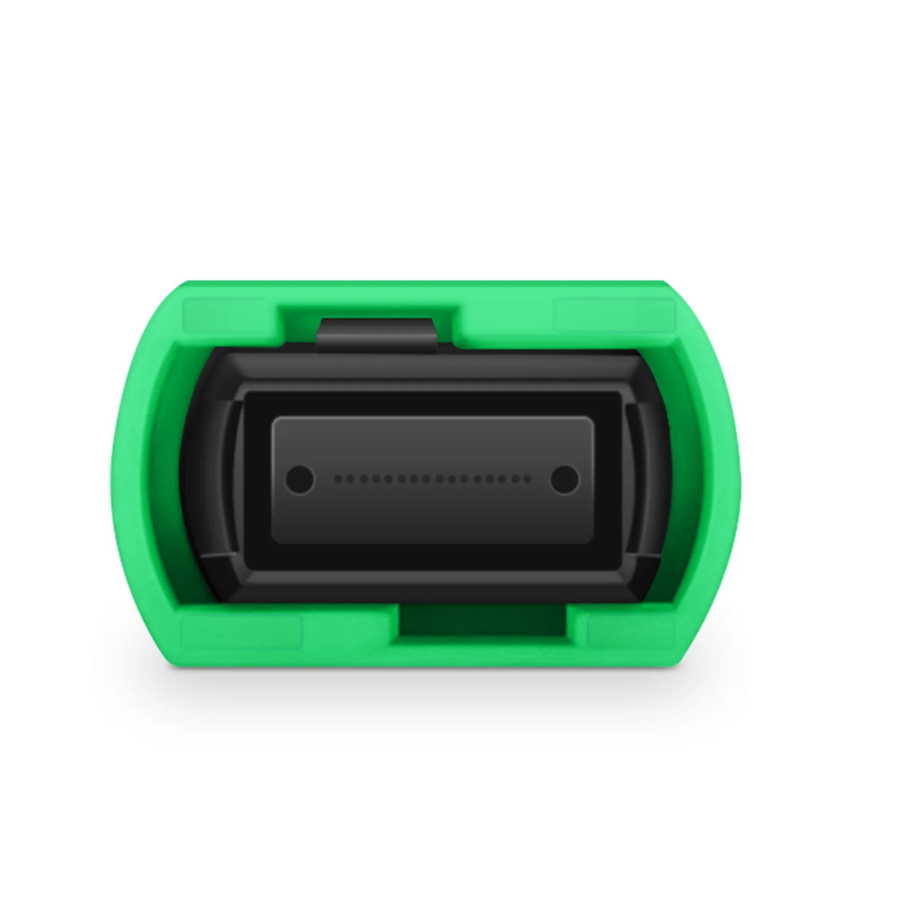

MPO-16 Female (Non-Pinned) with Offset Key
Connector B
MPO-16 Female (Non-Pinned) with Offset Key
Polish Type
APC to APC
Glass Fiber
Bend Insensitive Fiber
Fiber Mode
OM3 50/125μm
Wavelength
850/1300nm
Fiber Count
16 Fibers
Polarity
Crossover
Cable Outside Diameter (OD)
3.0mm
Cable Jacket
Plenum (OFNP)
Min. Bend Radius (Optical Fiber)
7.5mm
Min. Bend Radius (Fiber Cable)
20/10D (Dynamic/Static)
Connector Durability
500 times
Tensile Strength
80/240N (Long/Short Term)
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥45dB
Attenuation at 850nm
≤2.3dB/km
Attenuation at 1300nm
≤0.6dB/km
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)
