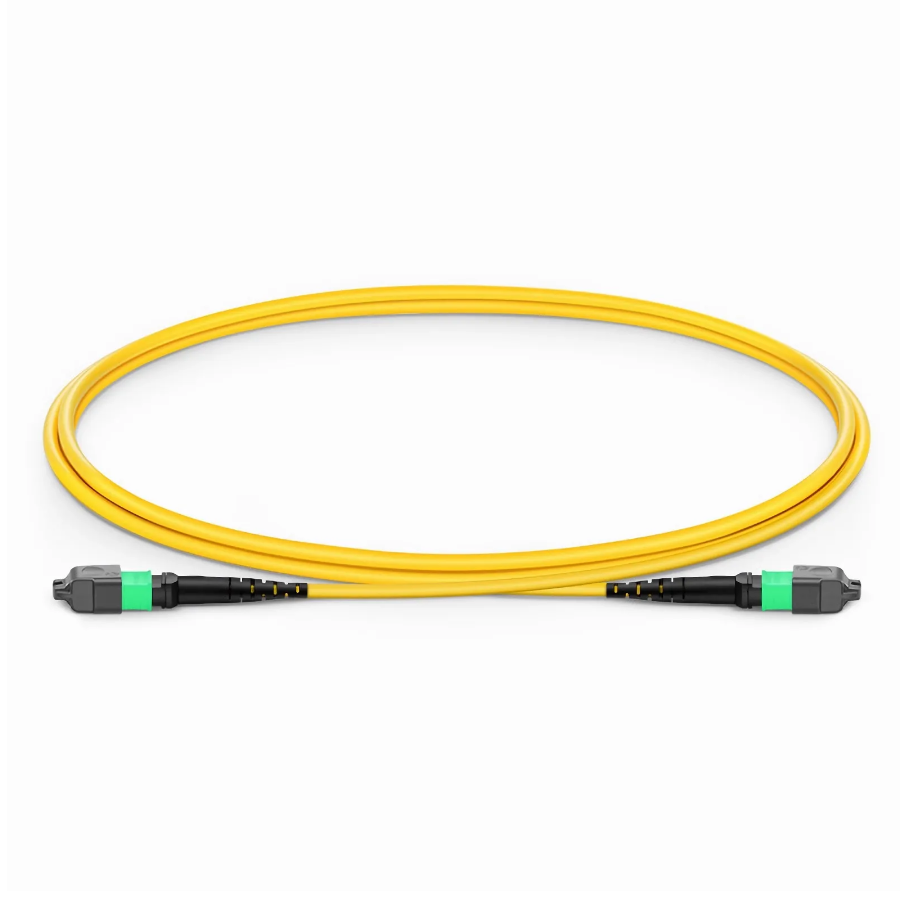

MPO-16 APC OS2 16 Fiber Cable

MPO Connector with Optimal 0.35dB Low IL
G.657.A1 Bend Insensitive Fiber with 10mm Min. Bend Radius
8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Designed for Linking 800G QSFP-DD Transceivers
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Connector Gender：
Side A/B Fiber Polish：
Cable Polarity：
Cable Length：
Online Inquiry
Product Details

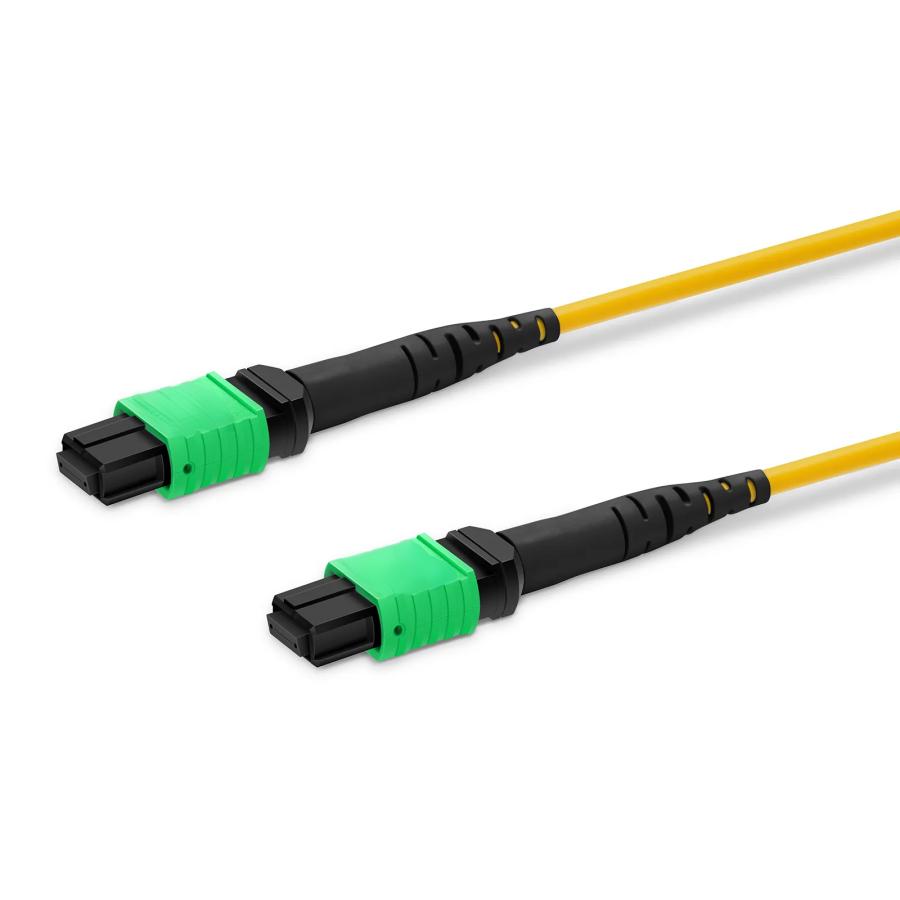

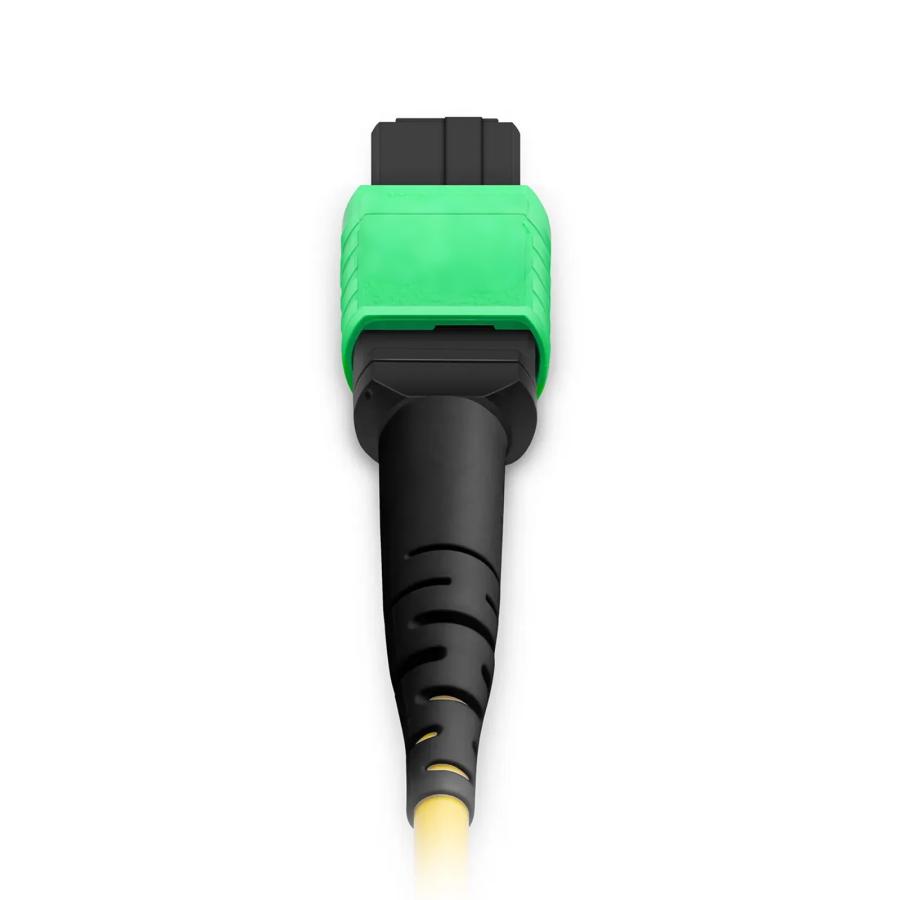

The MPO-16 jumper is factory-terminated and tested to deliver verified optical performance and reliability, with an MPO-16 APC end featuring an 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting signal quality.

It is ideal for 16-fiber parallel single mode optical transceiver applications, such as 800G QSFP-DD DR8 optics transmission in data center high-speed fiber links.

Specifications
Connector A

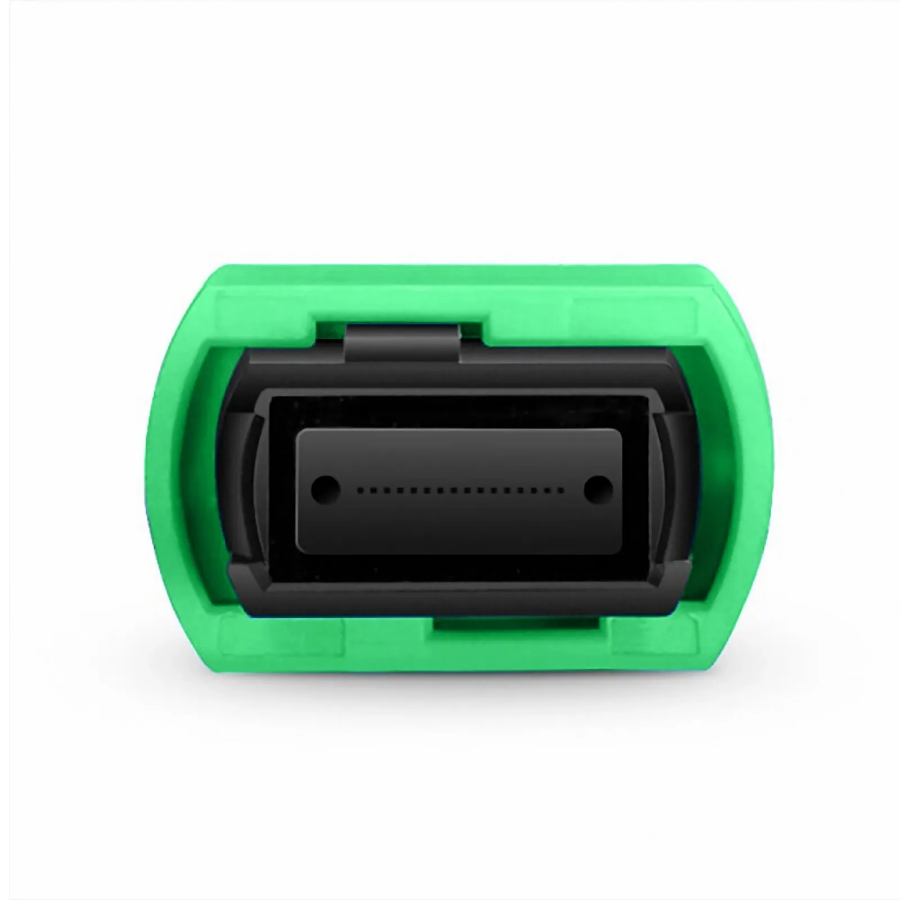

MPO-16 Female (Non-Pinned) with Offset Key
Connector B
MPO-16 Female (Non-Pinned) with Offset Key
Polish Type
APC to APC
Glass Fiber
G.657.A1
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Fiber Count
16 Fibers
Polarity
Crossover
Cable Outside Diameter (OD)
3.0mm
Cable Jacket
Plenum (OFNP)
Min. Bend Radius (Optical Fiber)
10mm
Min. Bend Radius (Fiber Cable)
10/5D (Dynamic/Static)
Connector Durability
500 times
Tensile Strength
80/240N (Long/Short Term)
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥60dB
Attenuation at 1310nm
≤0.35dB/km
Attenuation at 1550nm
≤0.21dB/km
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)
