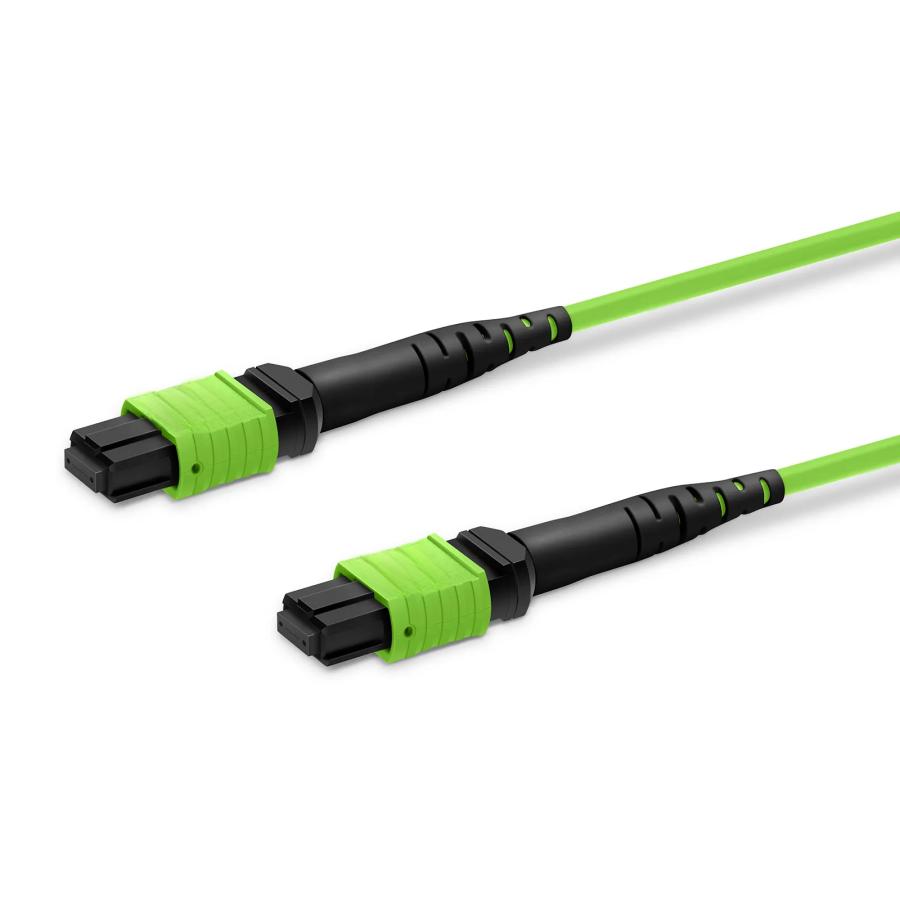

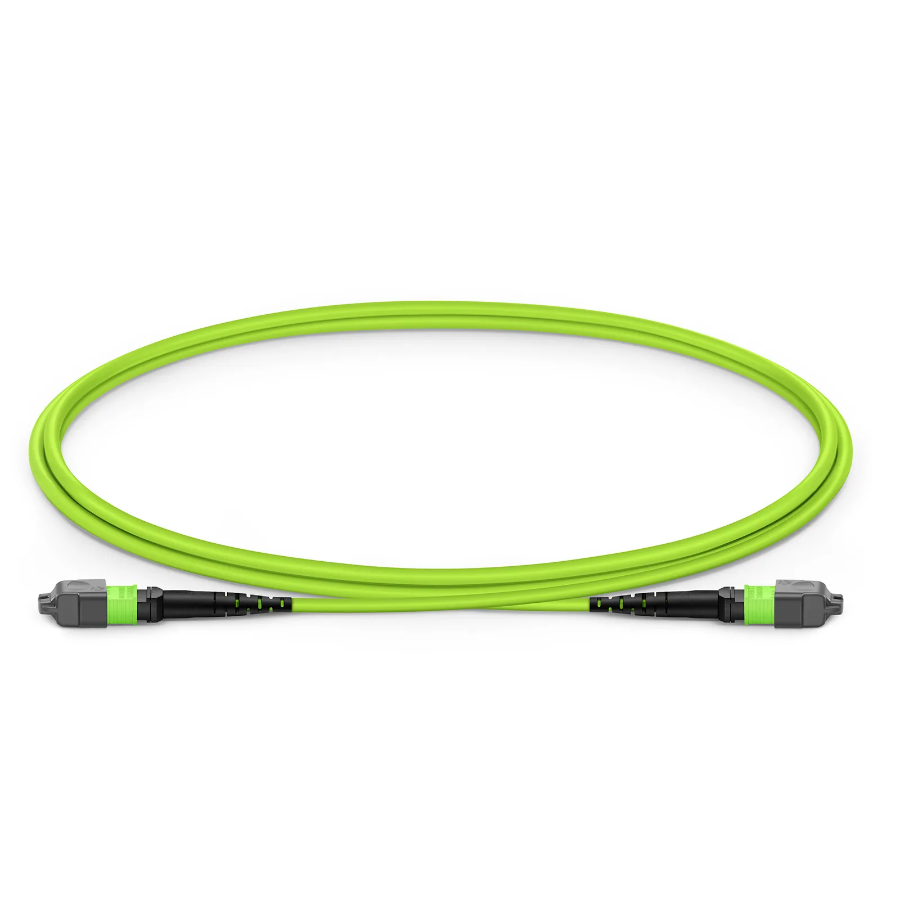

MPO-12 APC/UPC OM5 12 Fiber Cable

MPO Connector with Optimal 0.35dB Low IL
Bend Insensitive Fiber with 7.5mm Min. Bend Radius
OFNP Fire Safety-Rated for Use in Plenum Air Spaces

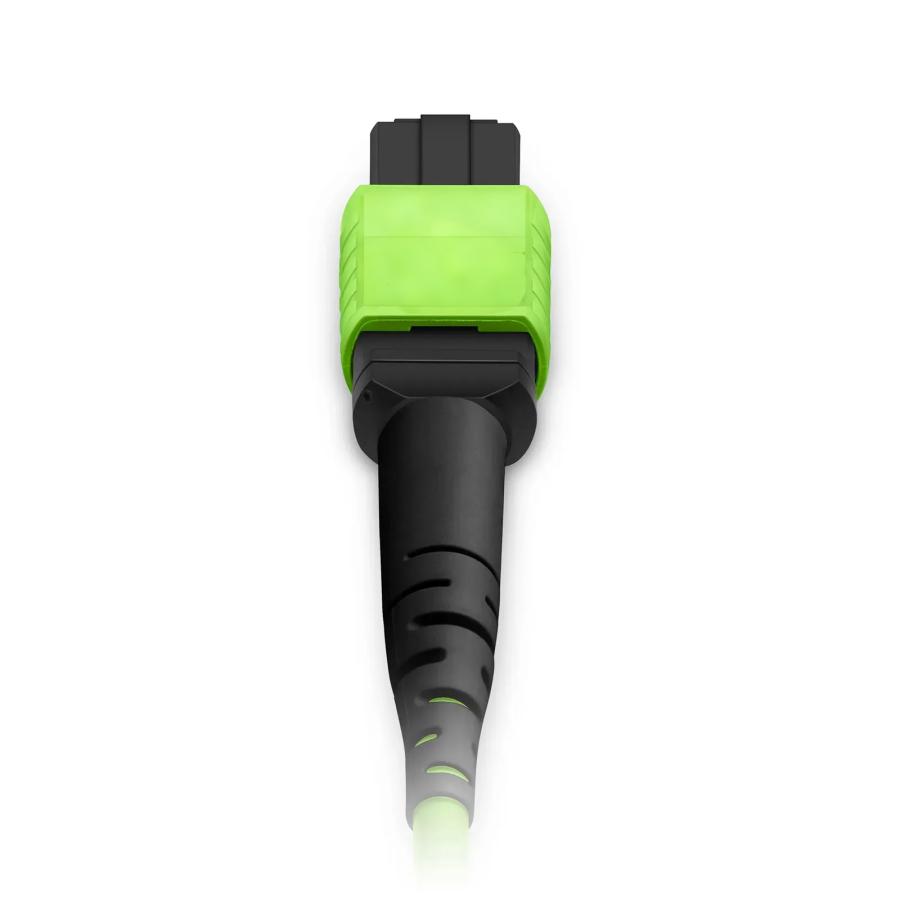

Color-Coded Connector Boots for Easy Identification
A WBMMF Solution Supports at Least 4 Wavelengths
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Side A/B Fiber Polish:
Cable Length:
Online Inquiry
Product Details

MTP® jumpers, allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunk cables. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

OM5 fibers are 100% standards compliant meeting all OM3 and OM4 specifications, with an additional requirement for Differential Mode Delay (DMD) that compensates for modal and chromatic dispersion. They include additional bandwidth characterization at 953 nm to support extended distances when using SWDM. OM5 fibers apply to data centers that require quick infrastructure deployment with extended reach and want to maintain bandwidth throughout the infrastructure.

Specifications
Connector A

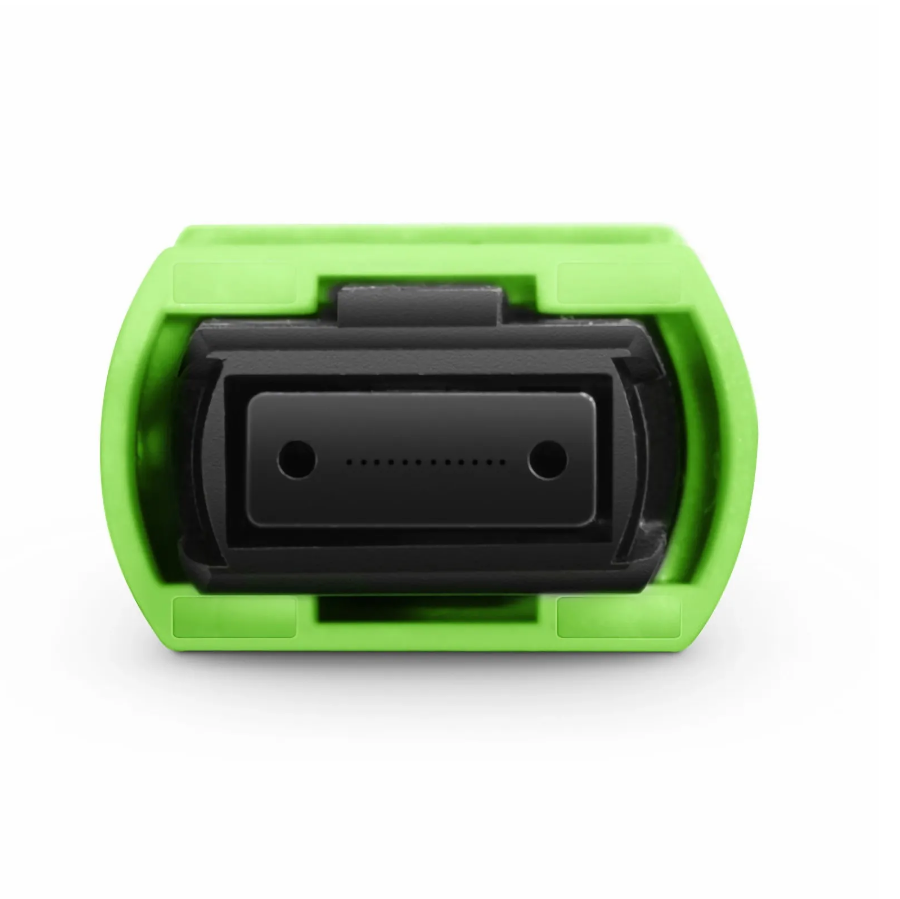

MPO Elite Female (Non-Pinned)
Connector B
MPO Elite Female (Non-Pinned)
Polish Type
UPC to UPC
Glass Fiber
Bend Insensitive Fiber
Fiber Mode
OM5 50/125μm
Wavelength
850/1300nm
Fiber Count
12 Fibers
Polarity
Type A
Cable Outside Diameter (OD)
3.0mm
Cable Jacket
Plenum (OFNP)
Min. Bend Radius (Optical Fiber)
7.5mm
Min. Bend Radius (Fiber Cable)
20/10D (Dynamic/Static)
Connector Durability
500 times
Tensile Strength
80/240N (Long/Short Term)
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥27dB
Attenuation at 850nm
≤2.3dB/km
Attenuation at 1300nm
≤0.6dB/km
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)
