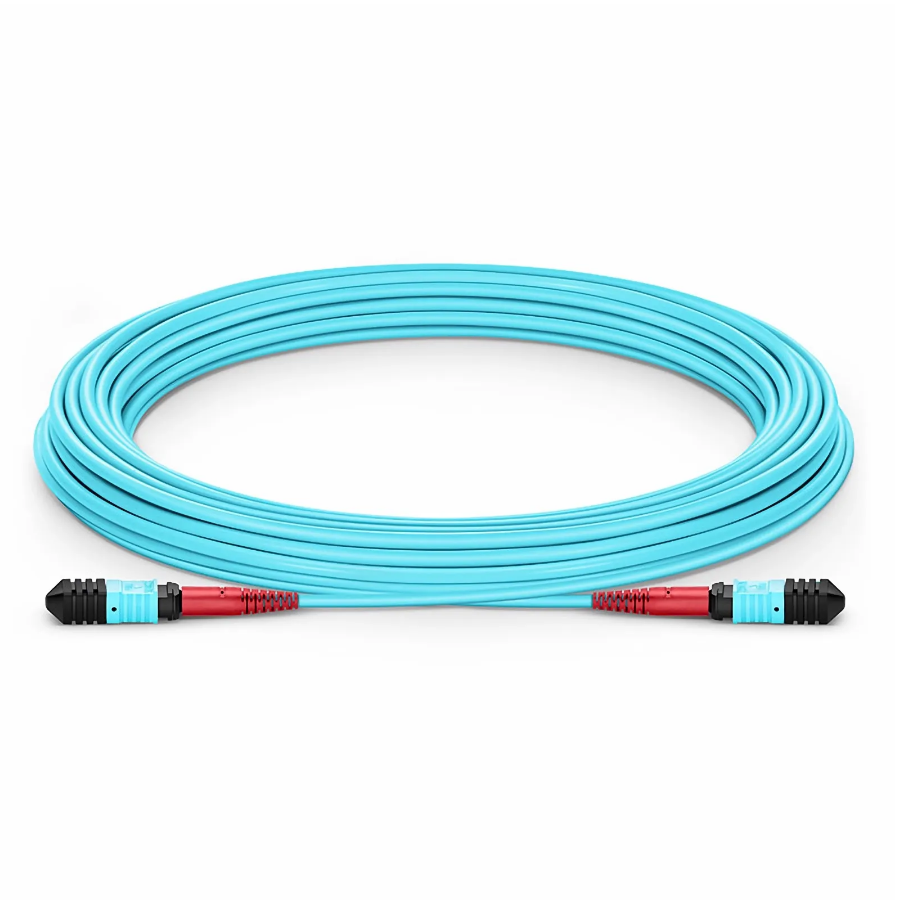

MPO-24 UPC OM3 24 Fiber Cable

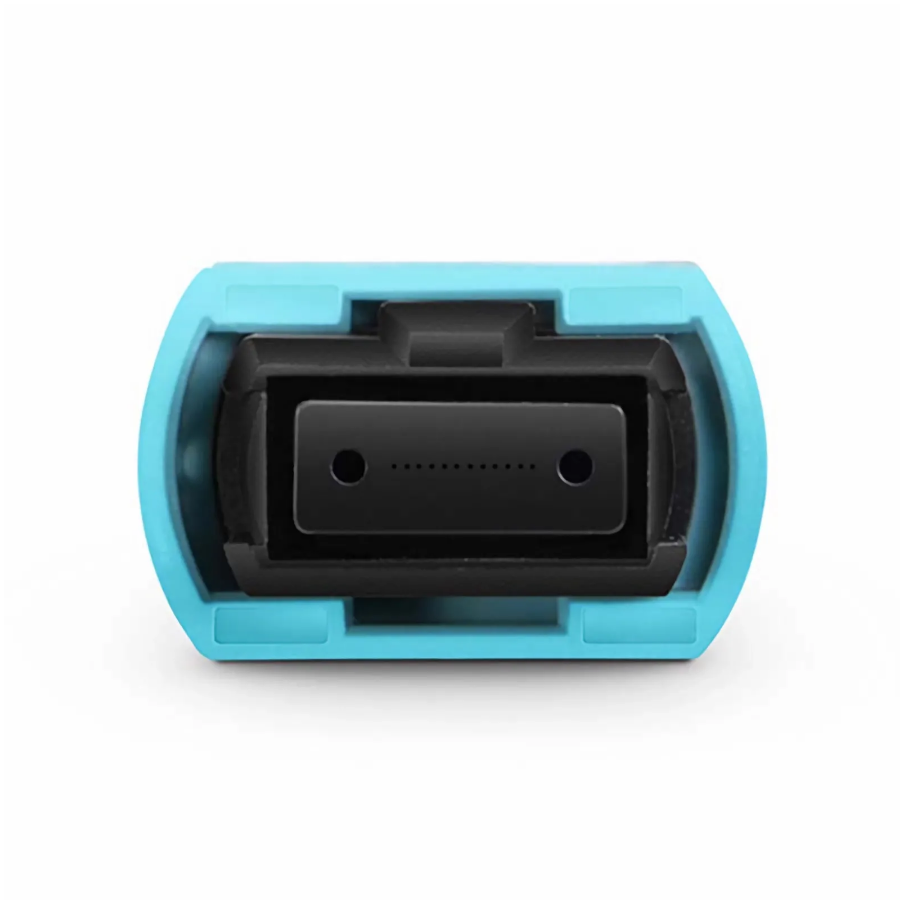

MPO Connector with Optimal 0.35dB Low IL
Bend Insensitive Fiber with 7.5mm Min. Bend Radius
LSZH Ensures Safety in Indoor Environments

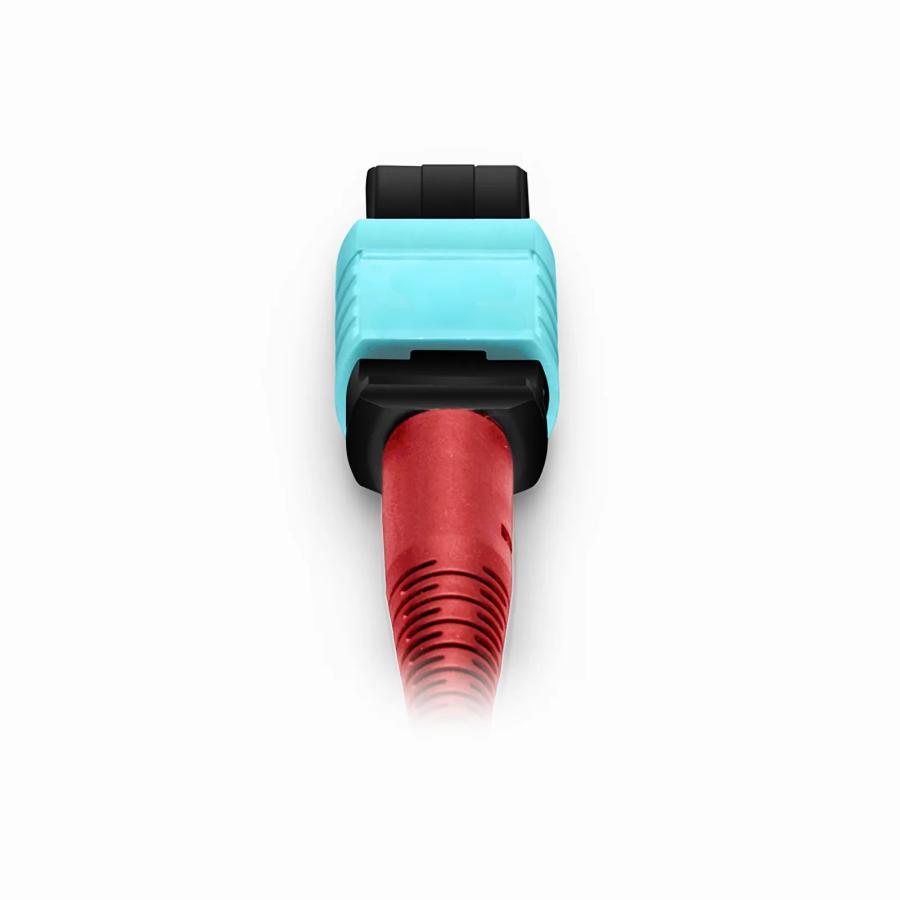

Color-Coded Connector Boots for Easy Identification
Typically Used for Patching Within a Cabinet
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Connector Gender：
Side A/B Fiber Polish：
Cable Polarity：
Cable Length：
Online Inquiry
Product Details

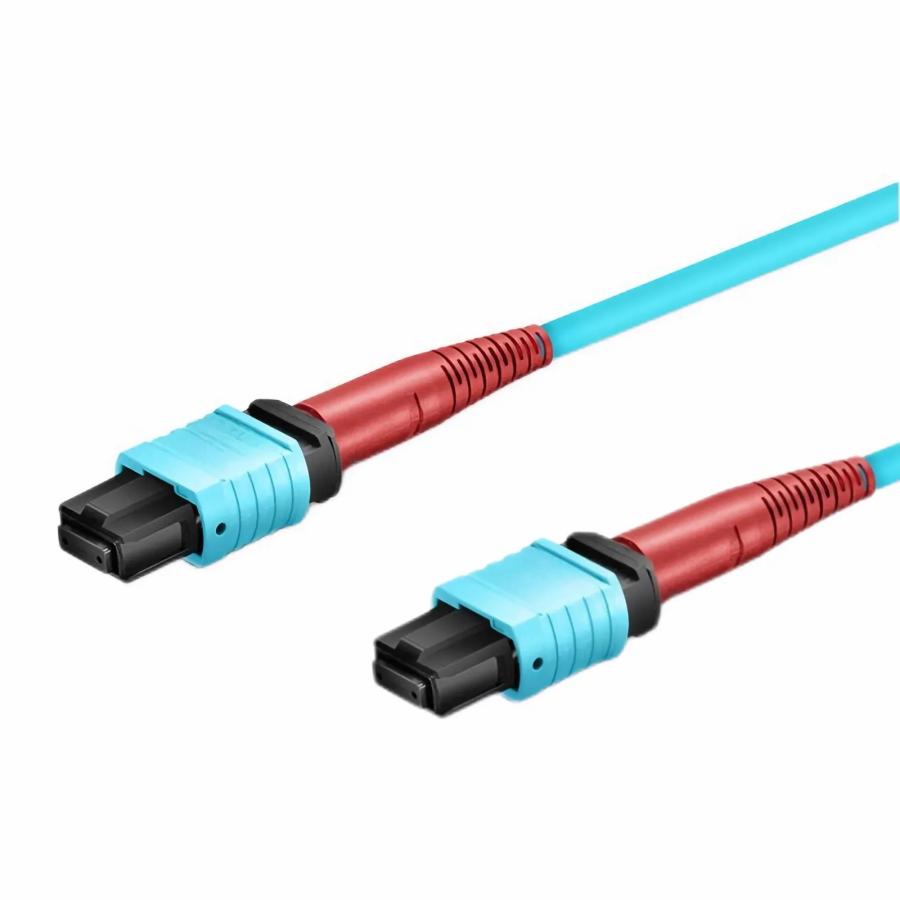

MPO jumper cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers where need space saving and reduce cable management troubles. In addition, with bend insensitive fiber, the high performance of connection is assured.

Specifications
Connector A
MPO (Pinless)
Connector B
MPO (Pinless)
Polish Type
UPC to UPC
Glass Fiber
Bend Insensitive Fiber
Fiber Mode
OM3 50/125μm
Wavelength
850/1300nm
Fiber Count
24 Fibers
Polarity
Type A
Cable Outside Diameter (OD)
3.0mm
Cable Jacket
LSZH
Min. Bend Radius (Optical Fiber)
7.5mm
Min. Bend Radius (Fiber Cable)
20/10D (Dynamic/Static)
Connector Durability
500 times
Tensile Strength
80/240N (Long/Short Term)
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥20dB
Attenuation at 850nm
≤2.3dB/km
Attenuation at 1300nm
≤0.6dB/km
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-20 to 70°C (-4 to 158℉)
