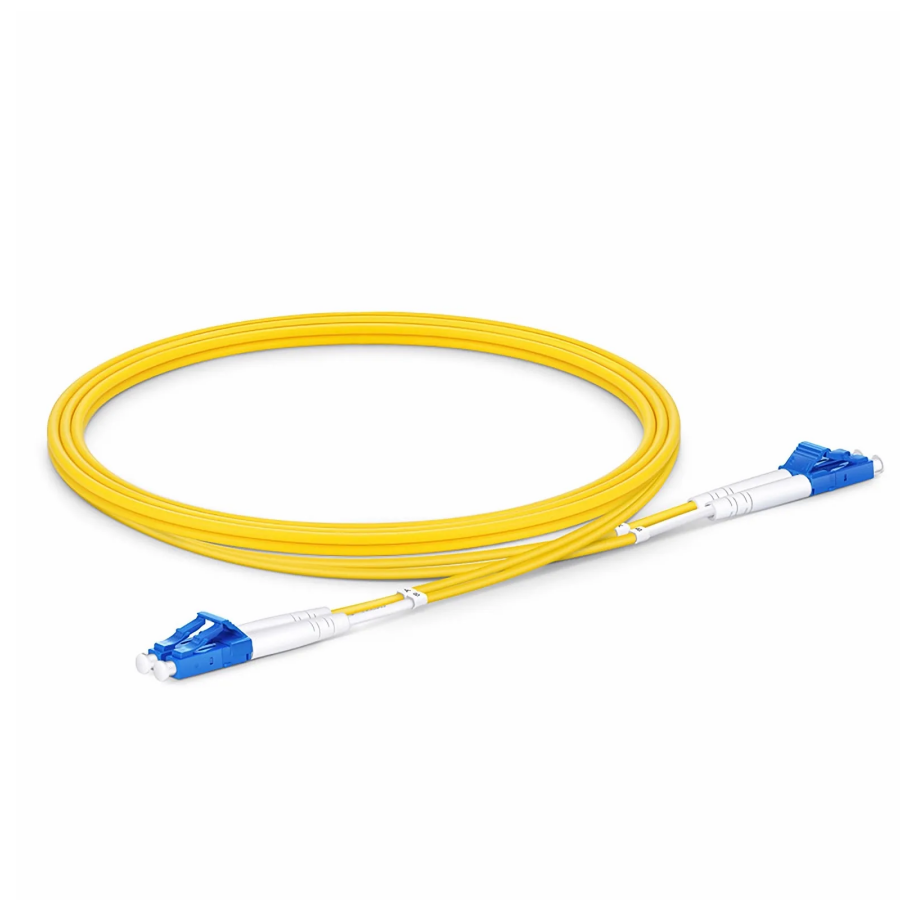

LC UPC DUPLEX OS2 Fiber Cable

G.657.A1 Bend Insensitive Fiber with 10mm Min. Bend Radius
Precision Zirconia Ferrule Connectors Ensure Low Loss
Flame-Retardant Riser (OFNR) for Vertical and Floor-to-floor Installations
Color-Coded Cable Jacket for Easy Identification
Duplex Zipcord Construction Reduces Risk of Damage from Crimping
Pre-terminated Cable Allows for Implementing Plug & Play Solutions
Exceptional Performance in a Data Center, Telecommunication Networks, or an Enterprise Setting
Fiber Polish:
Cable Length:
Fiber type:
Online Inquiry
Product Details

Fiber patch cables provide interconnect and cross-connect of applications over data centers, telecommunication networks, and enterprise environments. Pre-terminated cables allow for the implementation of complete plug & play solutions to install even large cabling systems rapidly.
This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It offers low signal attenuation and high bandwidth for long-distance transmission.
The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.

Specifications
Connector A
LC UPC Duplex
Connector B
LC UPC Duplex
Fiber Count
2 Fibers
Fiber Grade
G.657.A1 (Compatible with G.652.D)
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Flame Rating
Riser (OFNR)
Cable Outside Diameter (OD)
2.0mm
Polarity
A (Tx) to B (Rx)
Cable Type
Tight-Buffered
Min. Bend Radius (Optical Fiber)
10mm
Min. Bend Radius (Fiber Cable)
10/5D (Dynamic/Static)
Connector Durability
1000 times
Tensile Strength
90/150N (Long/Short Term)
Insertion Loss
≤0.3dB
Return Loss
≥50dB
Attenuation at 1310nm
0.4dB/km
Attenuation at 1550nm
0.3dB/km
Operating Temperature
-10 to 70°C (14 to 158℉)
Storage Temperature
-20 to 70°C (-4 to 158℉)
