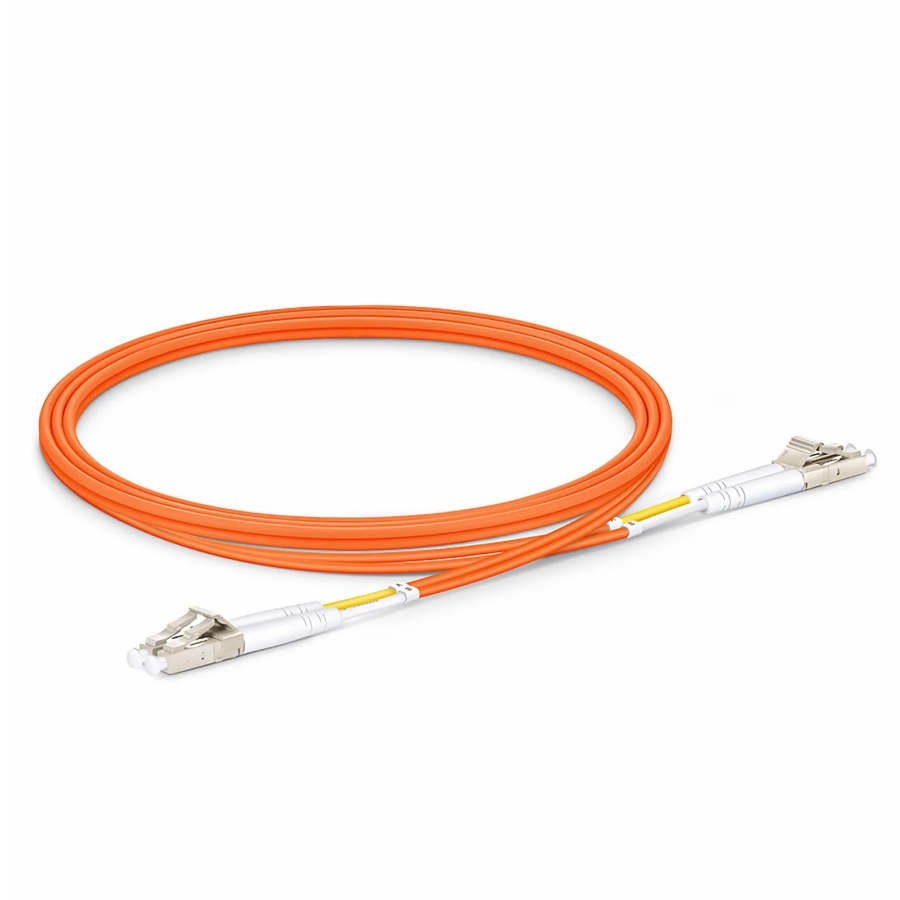

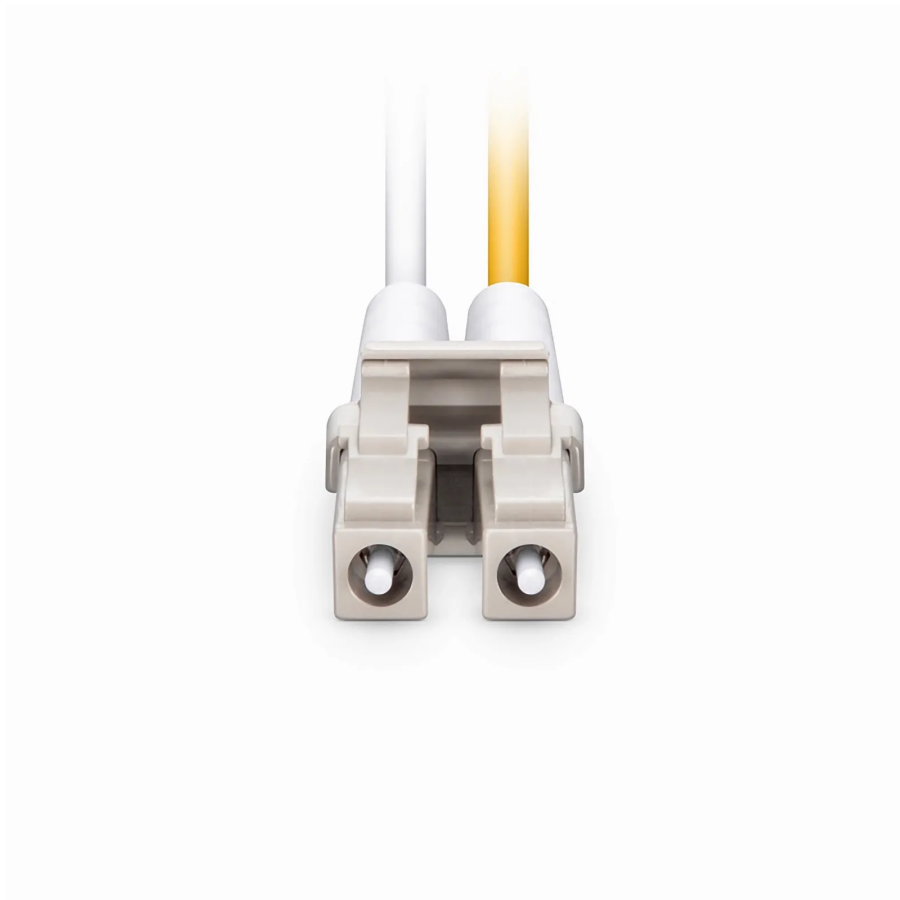

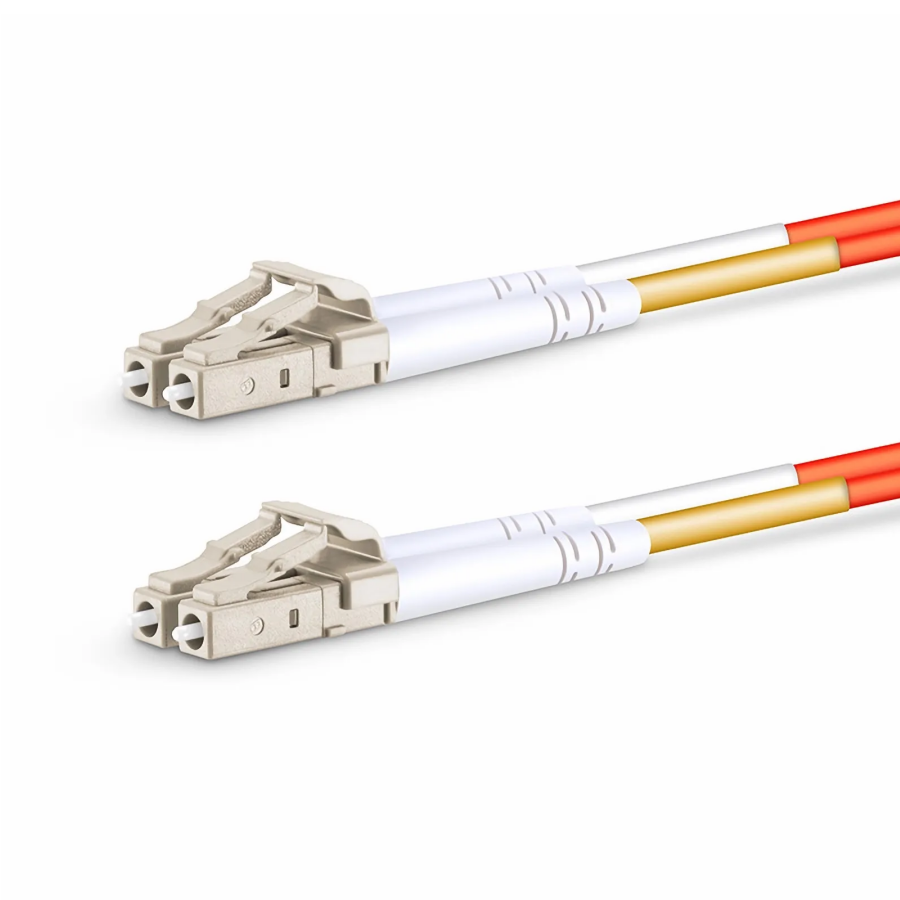

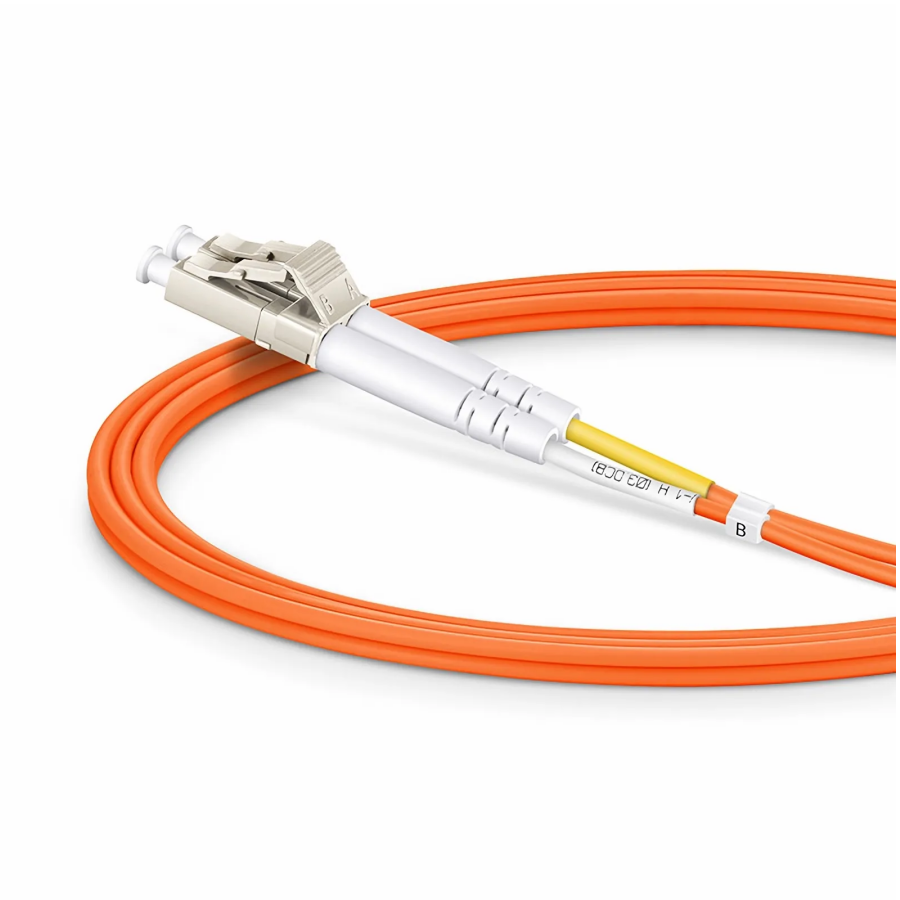

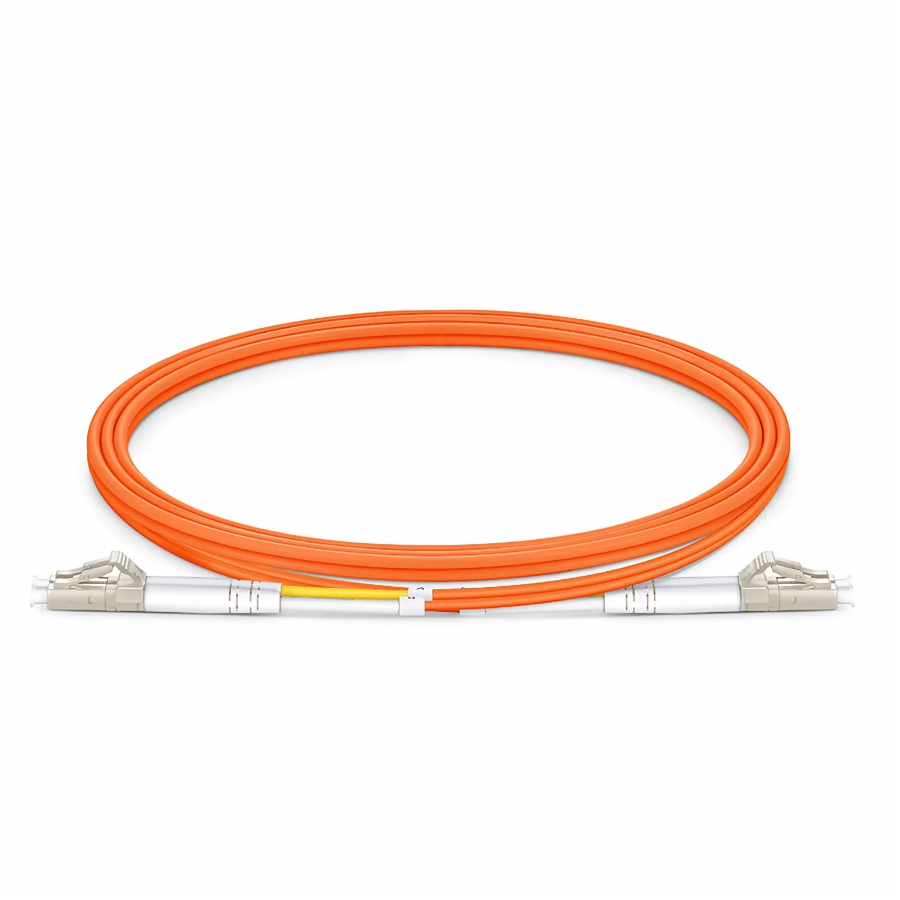

LC UPC DUPLEX OM2 Fiber Cable

Precision Zirconia Ferrule Connectors Ensure Low Loss
Flame-Retardant Riser (OFNR) for Vertical and Floor-to-floor Installations
Color-Coded Cable Jacket for Easy Identification
Duplex Zipcord Construction Reduces Risk of Damage from Crimping
Optical Testing Ensures Network Performance
Pre-terminated Cable Allows for Implementing Plug & Play Solutions
Exceptional Performance in a Data Center, Telecommunication Networks, or an Enterprise Setting
Fiber Polish：
Flame Rating：
Cable Length：
Fiber type：
Online Inquiry
Product Details

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.

This OM1 fiber patch cable is ideal for connecting 100/1000BASE-SX transceivers etc. for fast Ethernet, gigabit Ethernet and fiber channel applications.

Specifications
Connector A
LC UPC Duplex
Connector B
LC UPC Duplex
Fiber Count
2 Fibers
Fiber Grade
G.651
Fiber Mode
OM1 62.5/125μm
Wavelength
850/1300nm
Polarity
A (Tx) to B (Rx)
Cable Type
Tight-Buffered
Cable Outside Diameter (OD)
2.0mm
Flame Rating
Riser (OFNR)
Min. Bend Radius (Optical Fiber)
15mm
Min. Bend Radius (Fiber Cable)
20/10D (Dynamic/Static)
Connector Durability
1000 times
Tensile Strength
90/150N (Long/Short Term)
Insertion Loss
≤0.3dB
Return Loss
≥30dB
Attenuation at 850nm
3.5dB/km
Attenuation at 1300nm
1.5dB/km
Operating Temperature
-10 to 70°C (14 to 158℉)
Storage Temperature
-20 to 70°C (-4 to 158℉)
