Rack Mount Patch Panel

According to the needs of data center setup, we recommend to use HDF
high-density rack-mounted cabinet; for data center with MDA, IDA or HDA
wiring area fiber trunk connection and management. It is installed in 19-inch
rack or cabinet with Pre-terminated MPO adapter module or MPO adapter
front panels. This economical design of Highdensity and module reduces the
number of frames, saving valuable rack space.
Online Inquiry
Product Details

Features

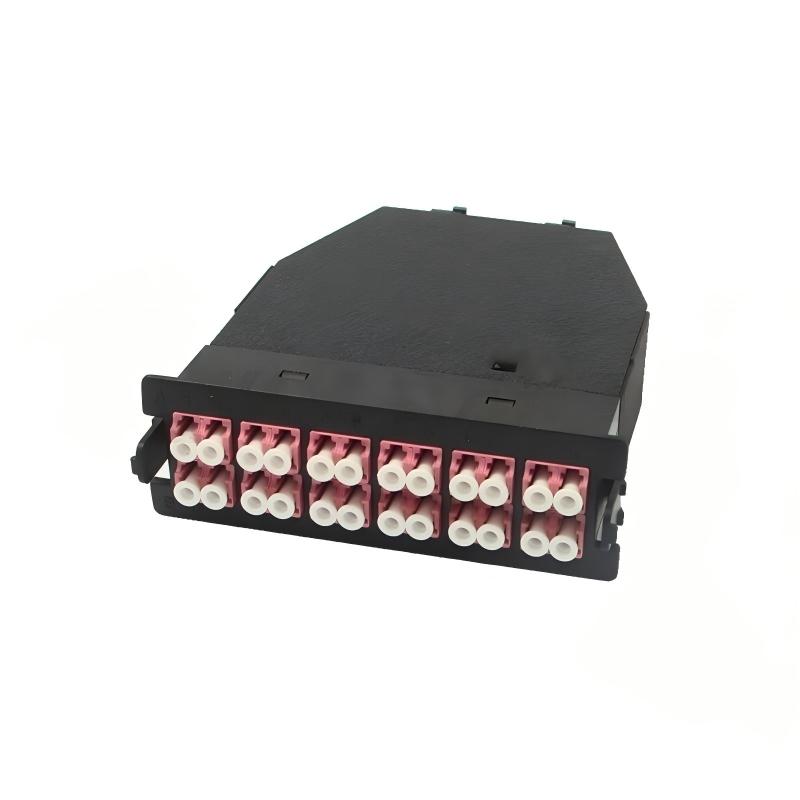

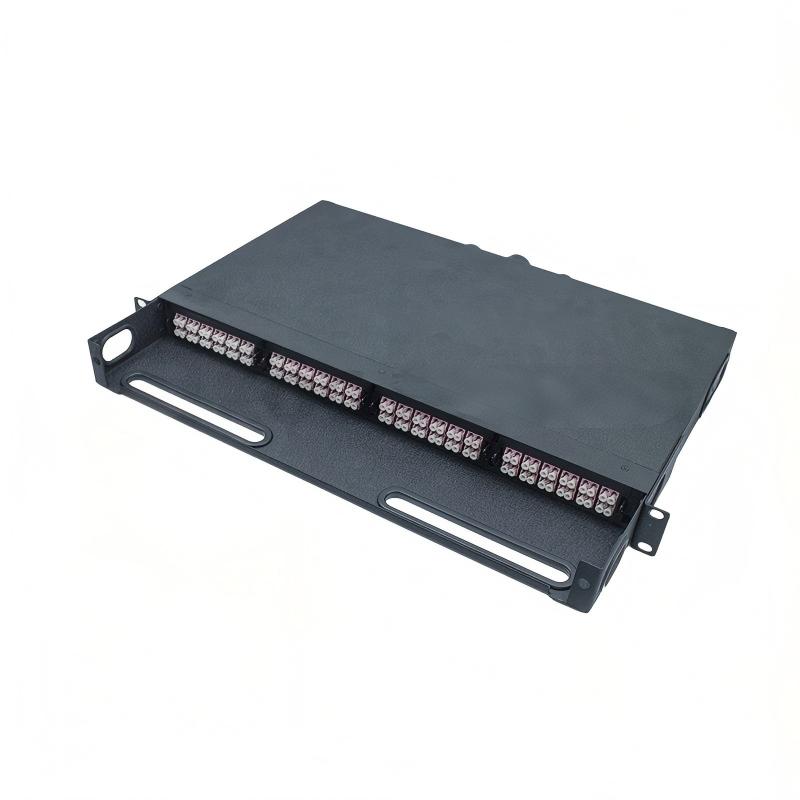

 • MPO 1U optical fiber patch panel can accommodate 4 MPO pre-terminated cassettes. If MPO panels are installed, the maximum cores can reach 288

 • MPO 2U optical fiber patch panel can accommodate 8 MPO pre-terminated cassettes. If MPO panels are installed, the maximum cores can reach 576

• MPO 3U optical fiber patch panel can accommodate 12 MPO pre-terminated cassettes. If MPO panels are installed, the maximum cores can reach 864

• Made of high quality cold rolled steel plate;

• Multiple cable entry and patch cord exit for easy operation and management • More than four times the density of traditional patch panels, greatly save the space of the cabinet

• Compliant with TIA / EIA604-D-2007, IEC61754-7-2008 series standards

• Modular design, 19-inch rack mount, easy for future expansio
