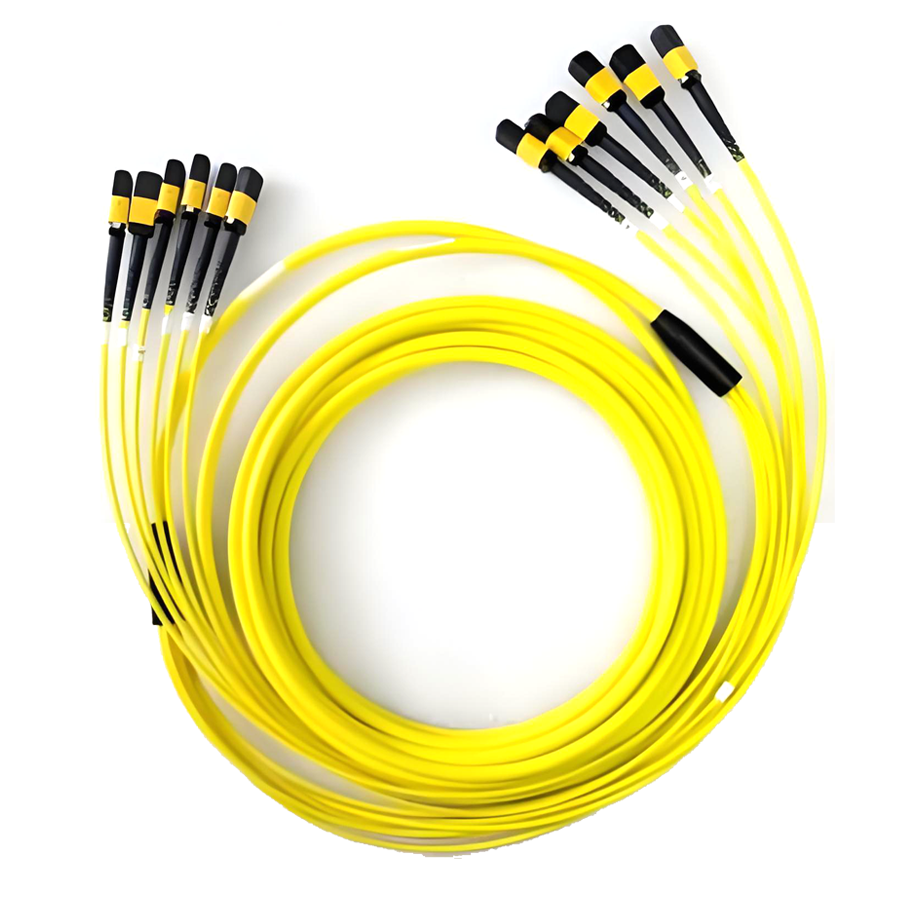

NxMPO-12 APC to NxMPO-12 APC Trunk Cable OS2

Low insertion loss and high return loss

High precision MPO connector

PC UPC APC end face polish

Up to 384 fibers – ideal for high density applications
Connector Gender:
Cable Polarity:
Cable Length:
Online Inquiry
Product Details

MPO Trunk Cables are pre-terminated, high-density fiber optic cables designed for rapid deployment in data centers, cloud computing, and high-speed communication networks. Helping to reduce installation time and costs while maintaining reliable signal transmission, they feature MPO connectors for efficient backbone cabling.

With support for multiple fiber counts (8, 12, 16, 24, or more), these cables offer a future-ready solution for high-bandwidth applications. With a plug-and-play design, they simplify network expansion and reconfiguration, making them well-suited for spine-leaf architectures, inter-rack links, and structured cabling setups.


Specifications

Connector AMPO/APC/MaleConnector BMPO/APC/Female
Fiber ModeSimgle mode 9/125μmWavelength1310/1550nm
Fiber Type 1SMF-28 Ultra®Fiber Type 2G.657  (Compatible with G.652D)
Fiber Count12FMin. Bend Radius10mm
PolarityType ACable JacketRiser (OFNR)
Cable OD3.0mmCable StructureMini Cable
Return Loss≥60dBInsertion LossMax. 0.35dB
Attenuation@1310nm≤0.4dB/kmAttenuation@1550nm≤0.3dB/km
Storage Temperature-40℃ ~ + 75℃Operating Temperature-10℃ ~ + 60℃
Installation Tensile Strength66NCable Tensile Strength(Long/Short)80/150N
Connctor Durability50 times
