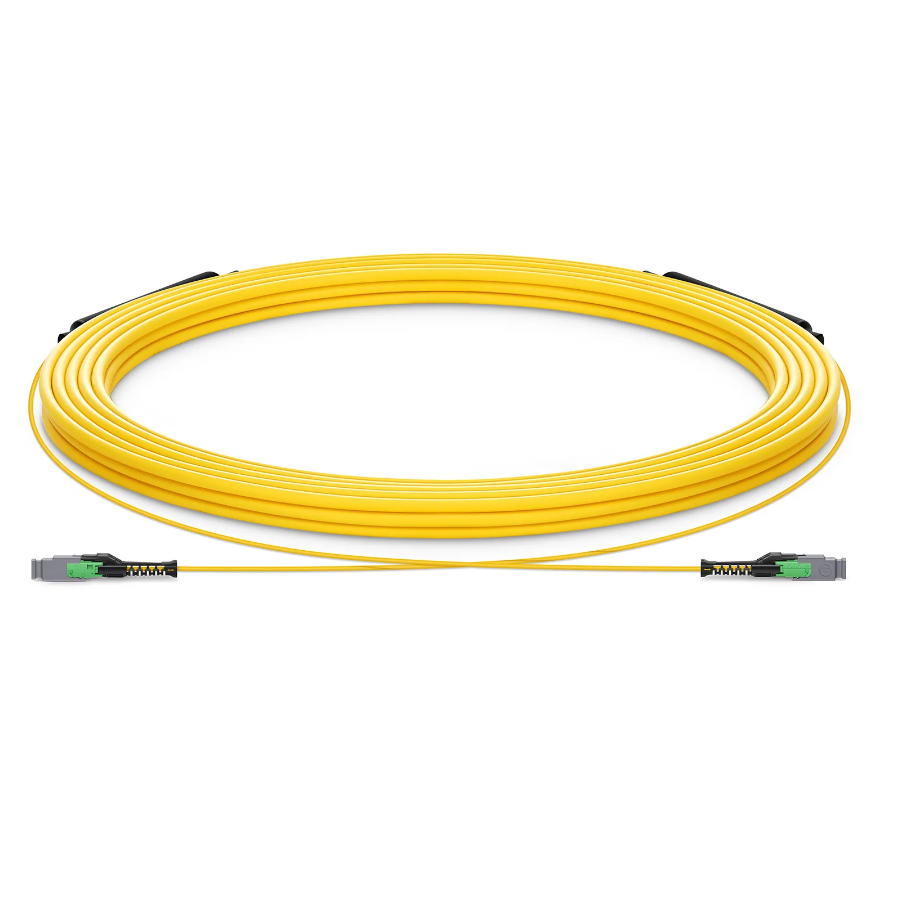

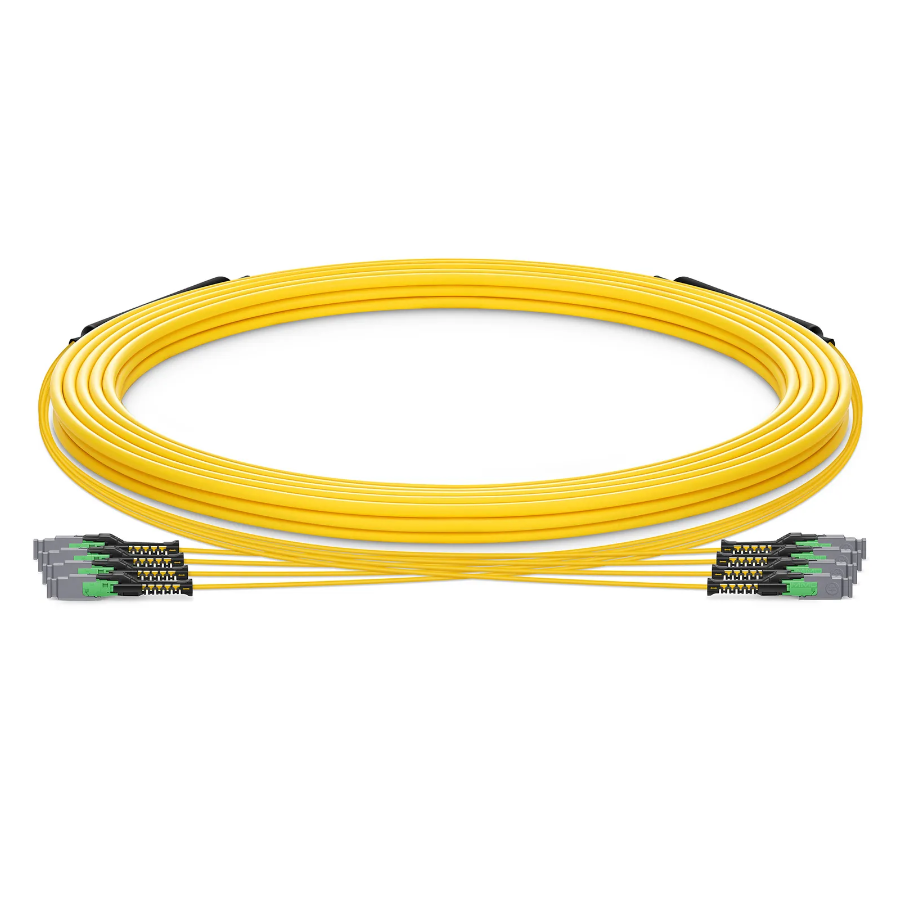

N×MMC-12 APC to N×MMC-12 APC Trunk Cable OS2

VSFF MMC Connector Supports 3x Cabling Port Density over the MPO Format
Top & Bottom Rails Enable Correct Orientation to Simplify Installation and Maintenance
Utilizes Proven MT/MT-16 Mechanical and Fiber Alignment Structures
DirectConec™ Push-Pull Boot for Effortless Connector Insertion and Extraction
TMT Elite™ Enable 0.35dB Low IL and APC for Superior Return Loss
Tested to Telcordia GR-1435
Support Data Center Structured Cabling and High-Bandwidth Applications
Online Inquiry
Product Details

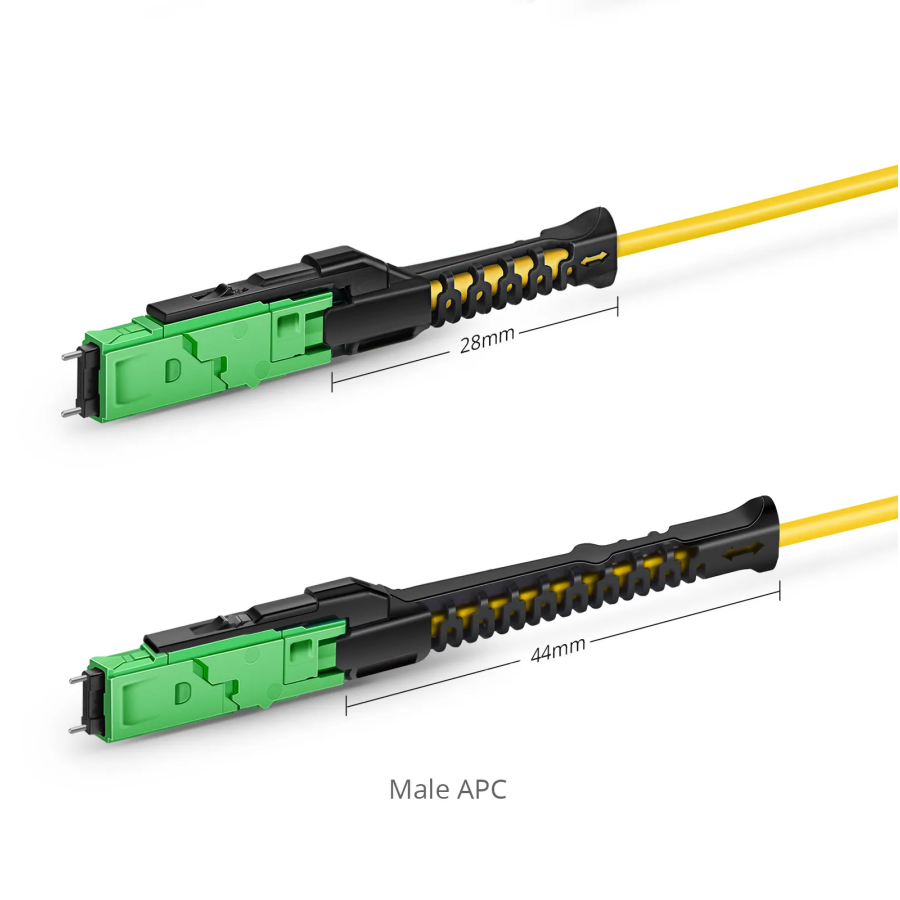

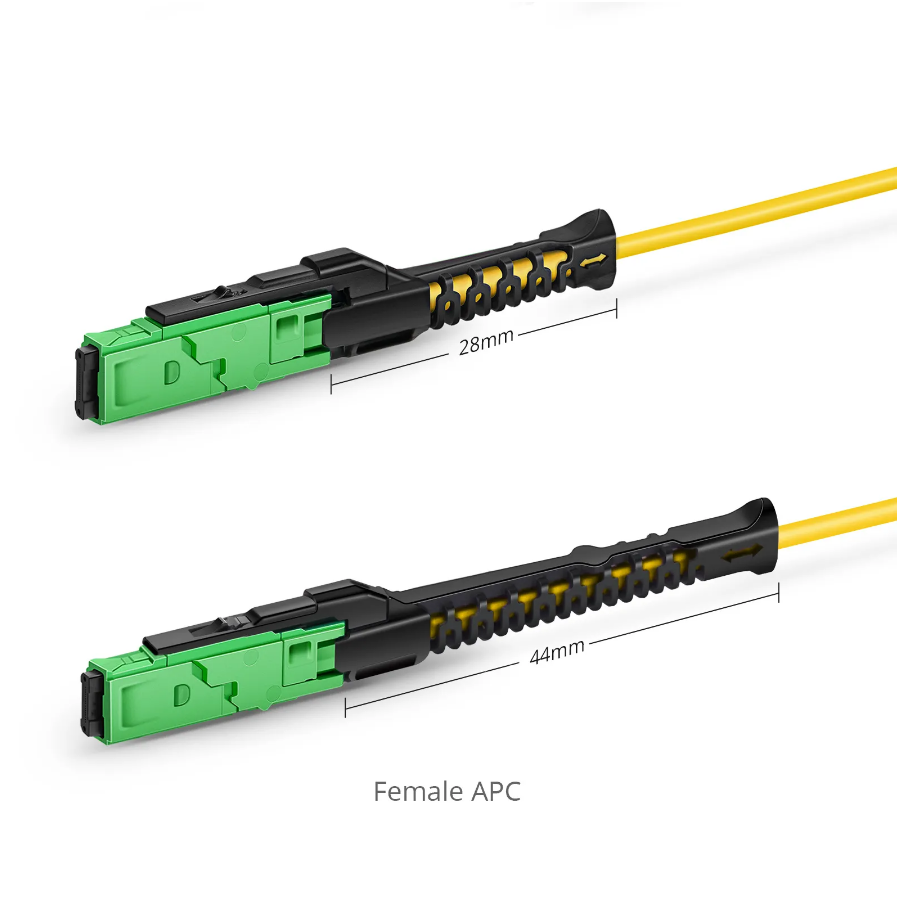

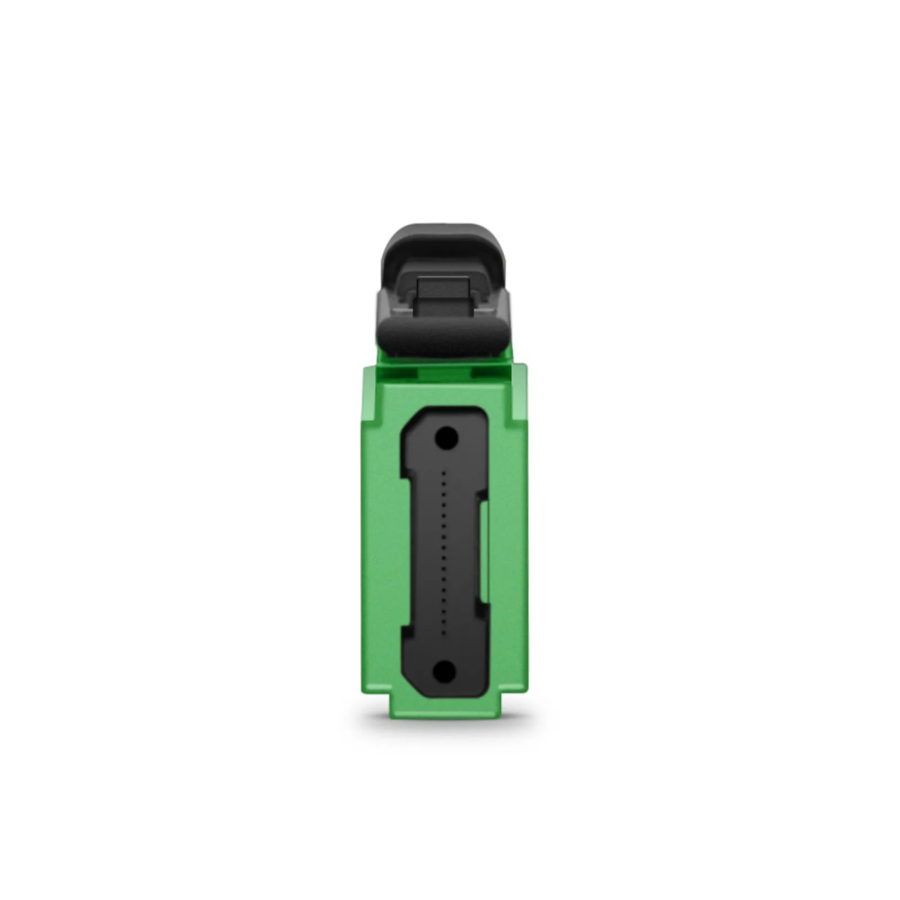

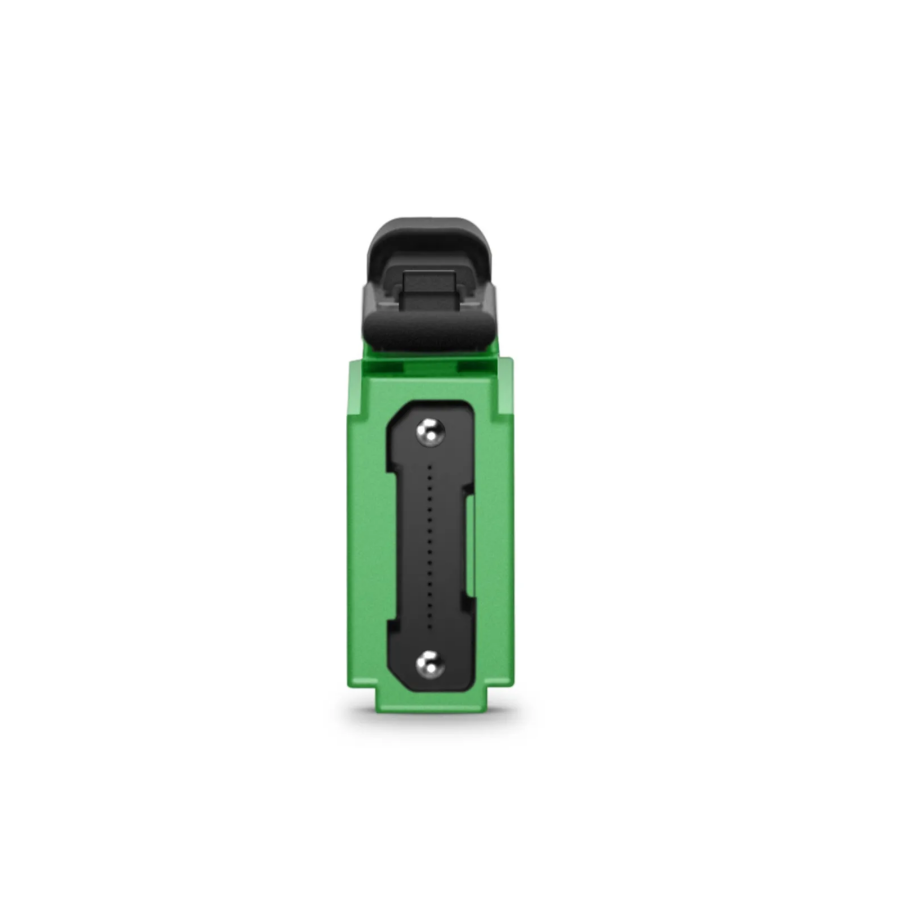

The MMC fiber cable is equipped with an MMC connector, a Very Small Form Factor (VSFF) multi-fiber optical connector designed to terminate single-mode and multimode fiber cables up to 2.5mm in diameter. It employs novel TMT ferrule technology harmonized with the MT/MT-16 alignment structure. Individual connector access in the most extremely dense connector environments is easily accomplished using revolutionary DirectConec™ push-pull boot technology.

MMC connectivity enables solutions that minimize the space required across multiple applications, including structured cabling, high fiber count data center interconnects, and high-bandwidth applications.

Specifications
Connector A
US Conec MMC
Connector B
US Conec MMC
Polish Type
APC to APC
Glass Fiber
G.657.A1
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Fiber Count
16-384 Fibers
Polarity
Trunk/ Extender Polarity
Cable Outside Diameter (OD)
4.0-17.5mm
Cable Jacket
Plenum (OFNP)
Min. Bend Radius (Optical Fiber)
10mm
Min. Bend Radius (Fiber Cable)
20/10D (Dynamic/Static)
Tensile Strength (Long Term)
200-400N
Tensile Strength (Short Term)
660-1320N
Insertion Loss
≤0.35dB
Return Loss
≥60dB
Attenuation at 1310nm
≤0.35dB/km
Attenuation at 1550nm
≤0.21dB/km
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)
