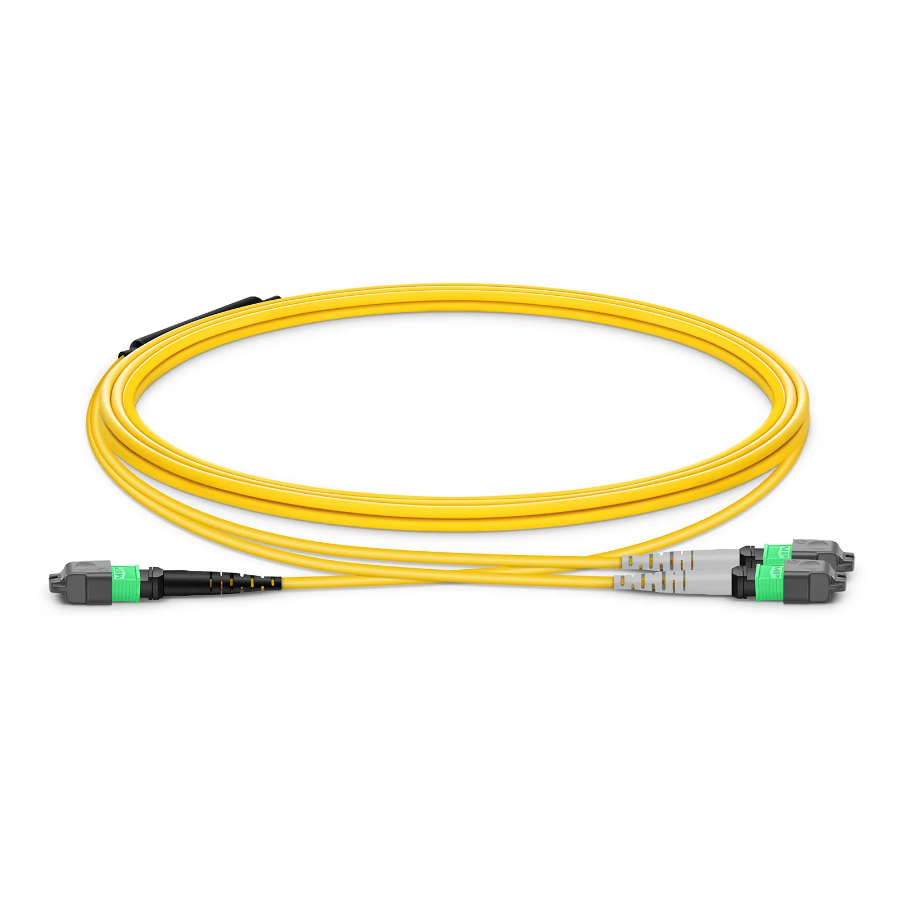

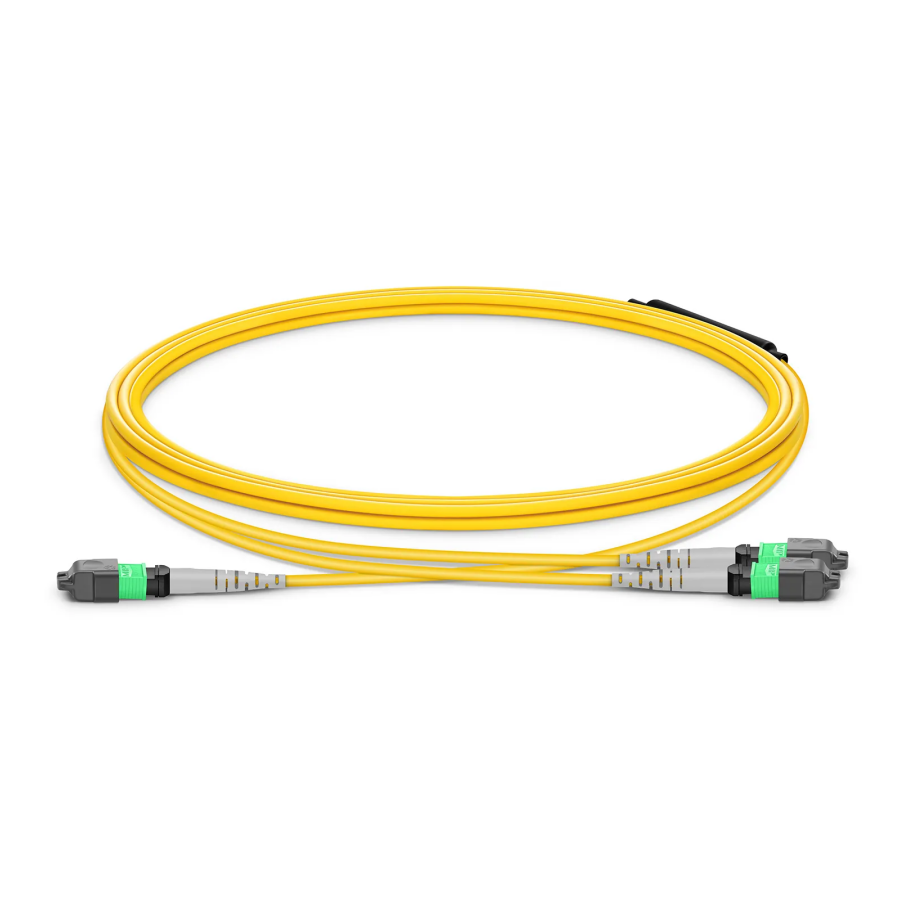

MPO-16 APC to 2×MPO-12 APC Breakout Cable,16 Fiber OS2

MPO Connector with Optimal 0.35dB Low IL
G.657.A1 Bend Insensitive Fiber with 10mm Min. Bend Radius
8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Designed for Linking 800G QSFP-DD and 400G QSFP-DD/OSFP Transceivers
Convert from 16 to 8 Fibers for 100% Fiber Utilizations
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Connector Gender：
Fiber Polish：
Polarity：
Cable Length：
Online Inquiry
Product Details

The MPO-16 to 2 x MPO-8 OM4 cable is a single-mode splitter fiber cable, whose MPO-16 APC end has an 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting the signal quality.

It is designed for linking two 400G optical QSFP-DD/OSFP transceivers transmission to 800G optical QSFP-DD transceiver transmission in data center high-speed fiber links. Compared to purchasing and installing separate breakout cassettes, using MTP® breakout cables is more cost-effective and lower-loss.

Specifications
Connector A

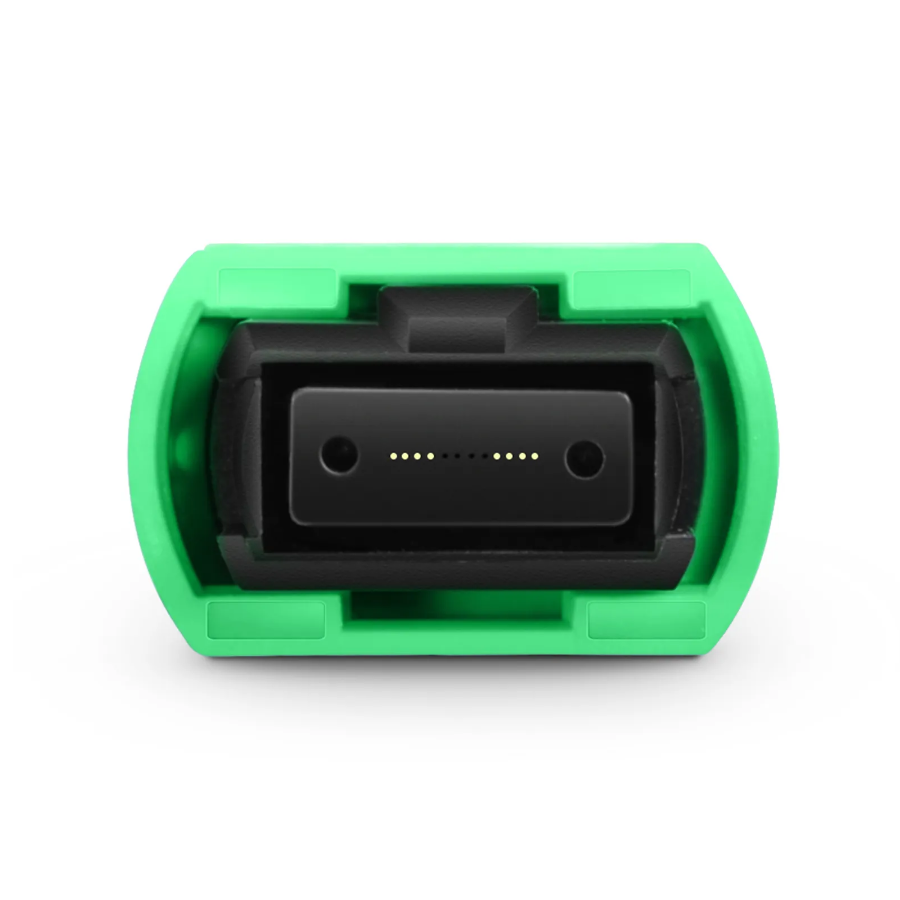

MPO-16 Female (Non-Pinned) APC with Offset Key
Connector B

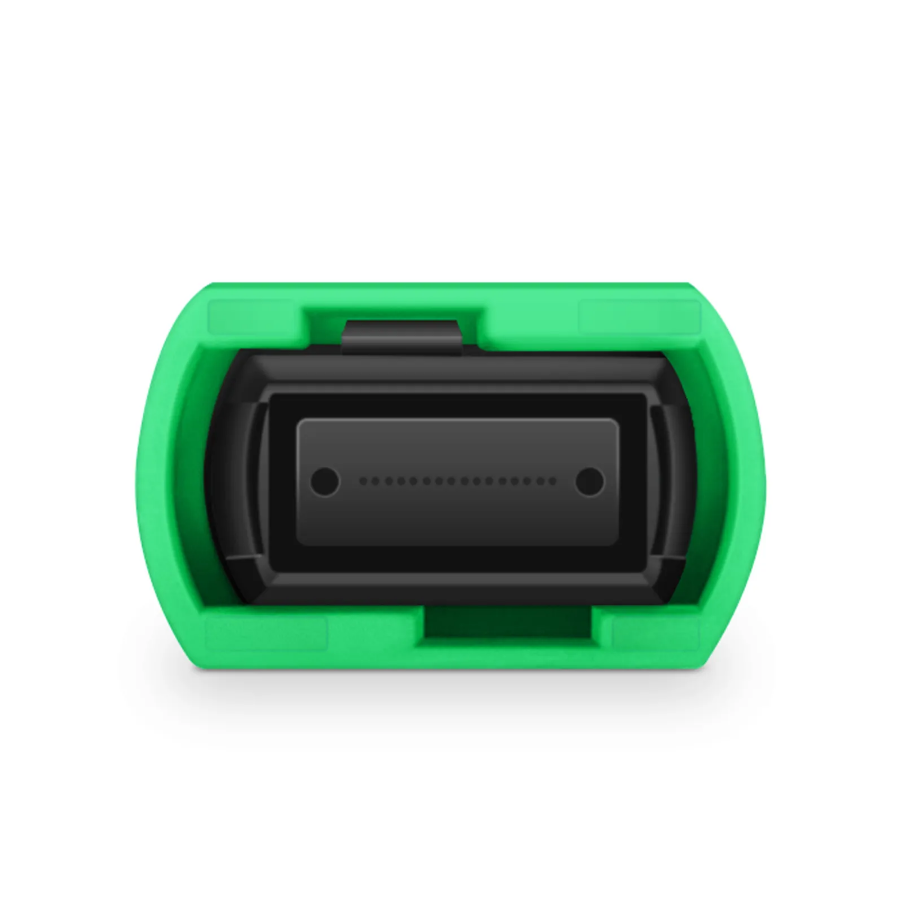

MPO-8 Female (Non-Pinned) APC
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Glass Fiber
G.657.A1
Polarity
Crossover
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥65dB
Cable Jacket
Plenum (OFNP)
Minimum Bend Radius
10mm
Attenuation at 1310nm
≤0.35dB/km
Attenuation at 1550nm
≤0.21dB/km
Cable Outside Diameter (OD)
3.0mm
Breakout Length
0.5m
Installation Tensile Load
66N
Tensile Strength
60/120N (Long/Short Term)
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)
