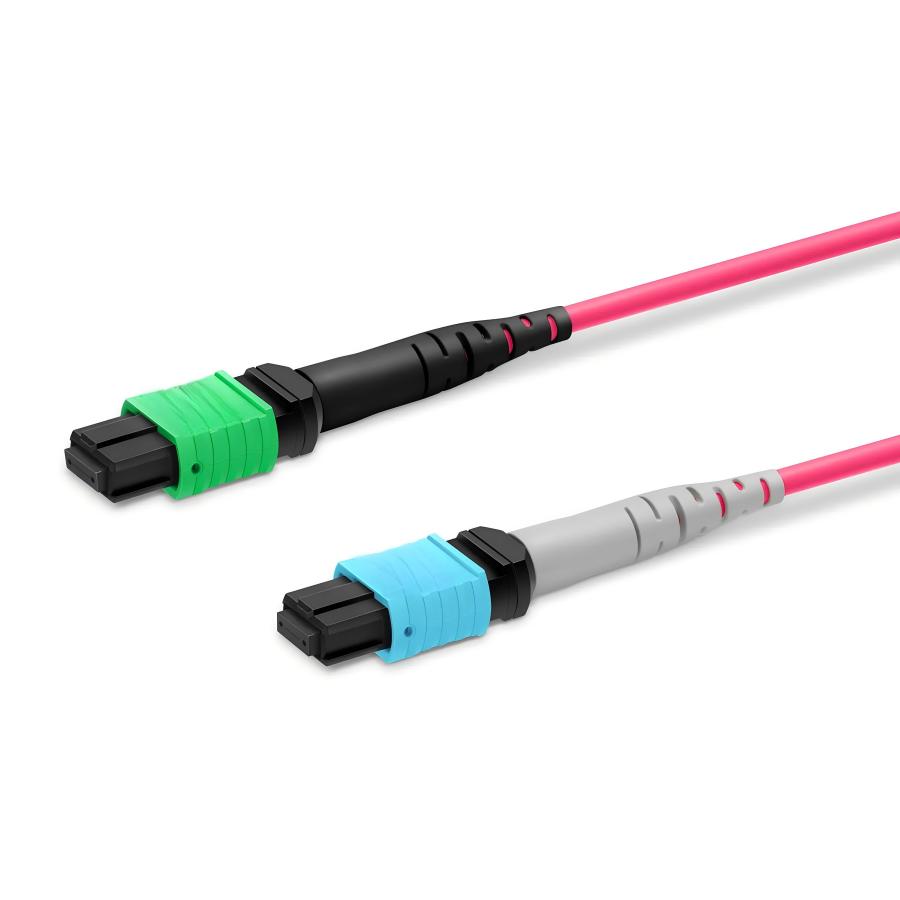

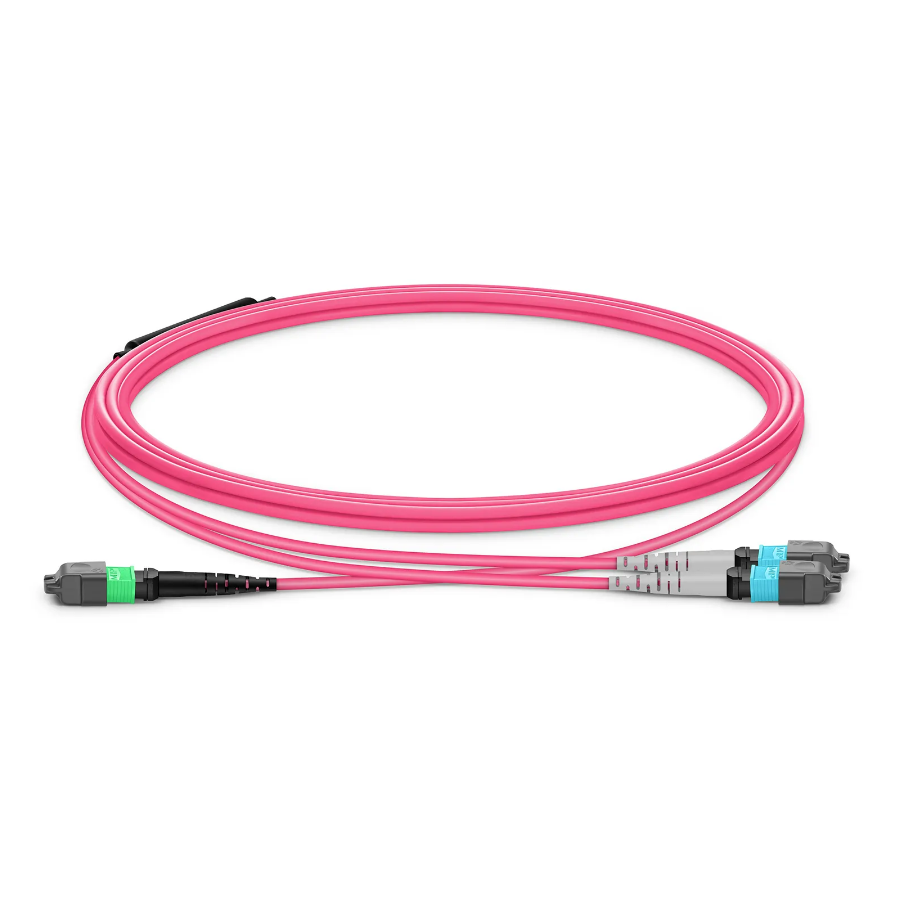

MPO-16 APC to 2×MPO-12 APC Breakout Cable,16 Fiber OM4

MPO Connector with Optimal 0.35dB Low IL
Bend Insensitive Fiber with 7.5mm Min. Bend Radius
8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Designed for Linking QSFP56 and QSFP-DD and OSFP Transceivers
Convert from 16 to 8 Fibers for 100% Fiber Utilizations
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Connector Gender：
Fiber Polish：
Polarity：
Cable Length：
Online Inquiry
Product Details

The MPO-16 to 2 x MPO-8 OM4 cable is a multimode splitter fiber cable, whose MPO-16 APC end has an 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting the signal quality.

It is designed for linking two 200G optical QSFP56 transceivers transmission to 400G optical QSFP-DD/OSFP transceiver transmission in data center high-speed fiber links. Compared to purchasing and installing separate breakout cassettes, using MTP® breakout cables is more cost-effective and lower-loss.

Specifications
Connector A

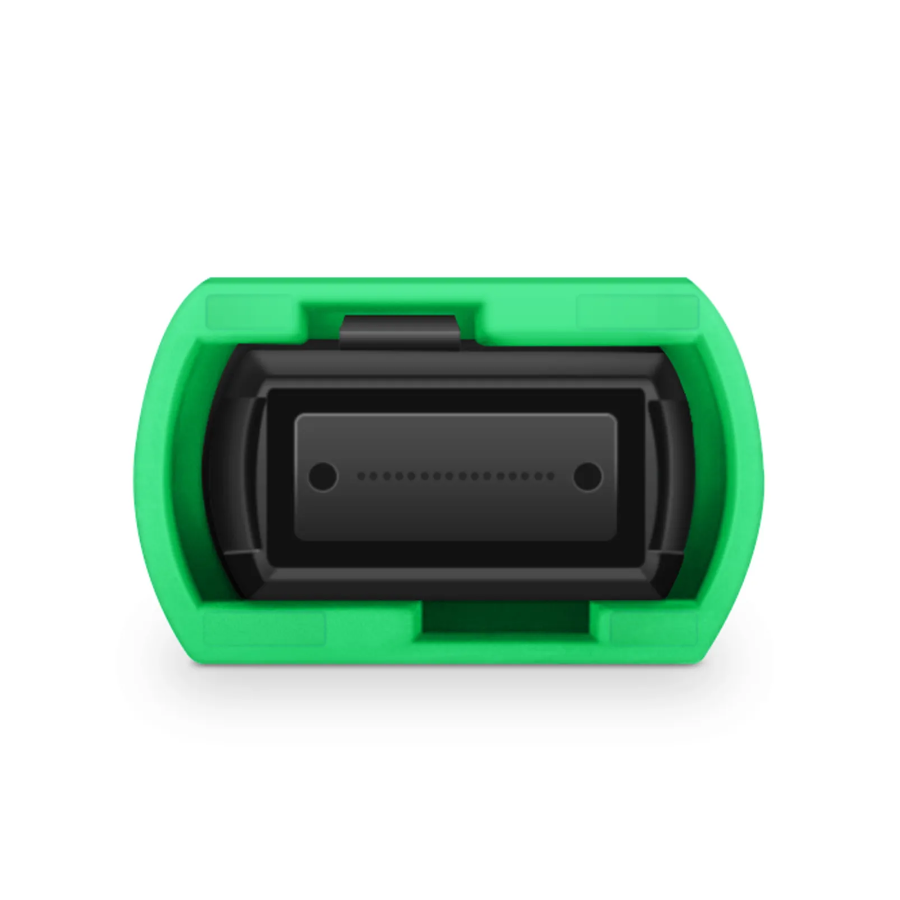

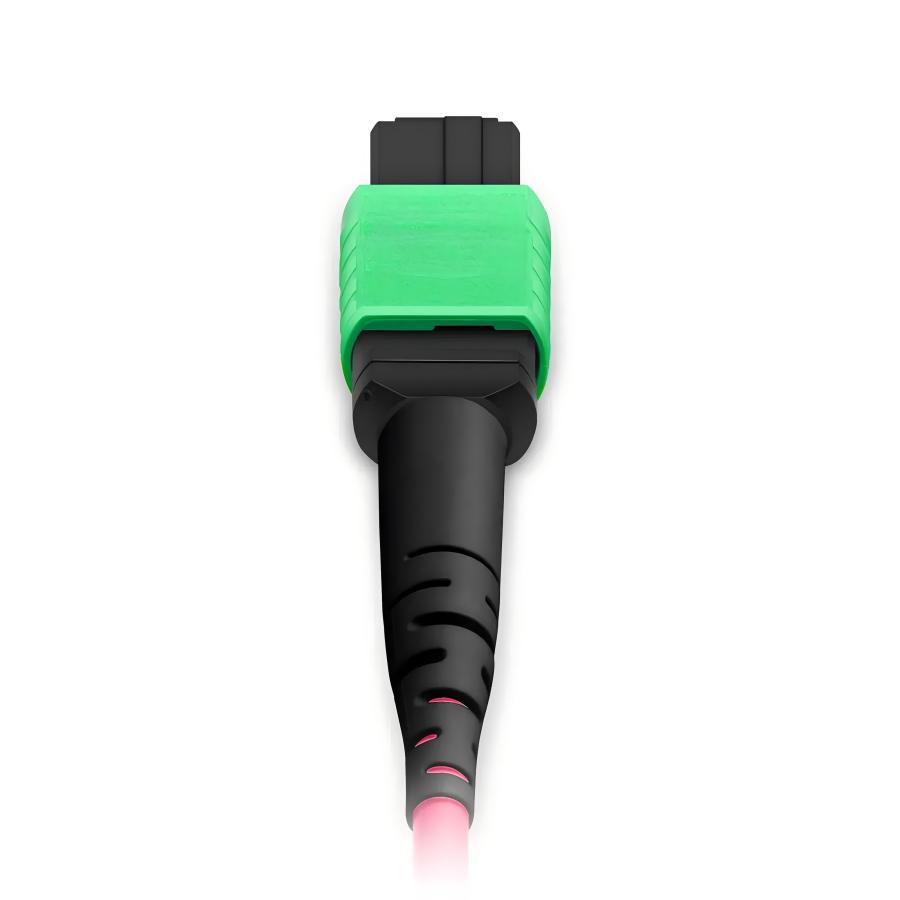

MPO-16 Female (Non-Pinned) APC with Offset Key
Connector B

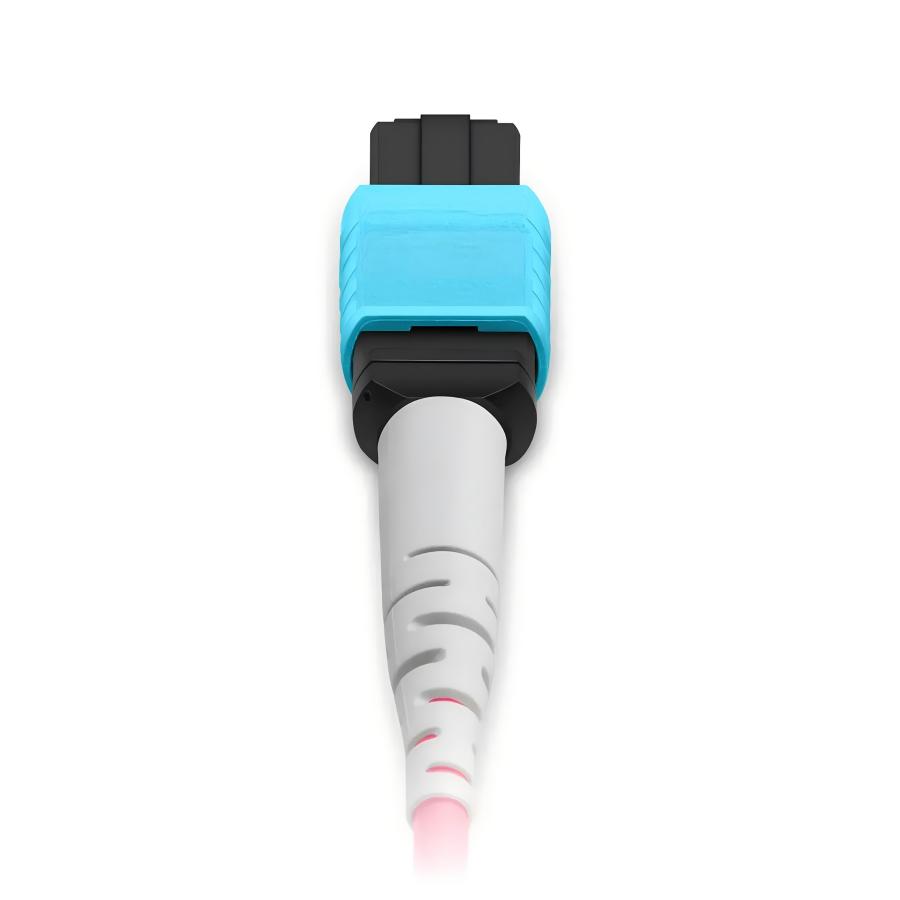

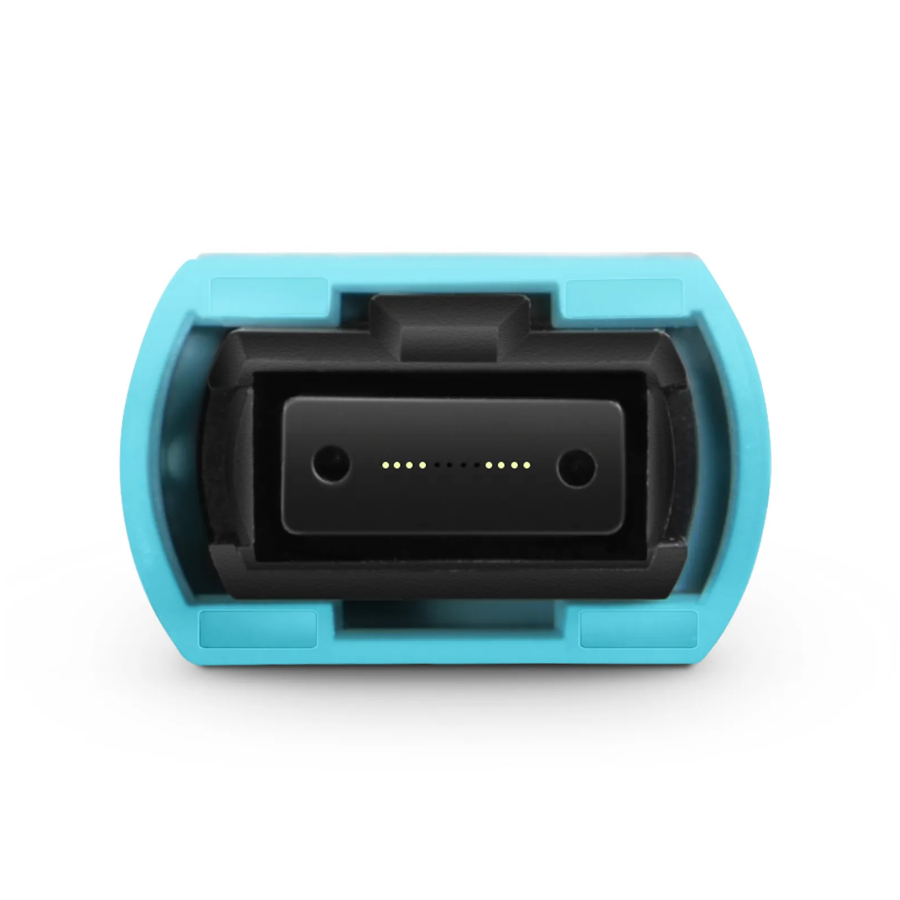

MPO-8 Female (Non-Pinned) UPC
Fiber Mode
OM4 50/125μm
Wavelength
850/1300nm
400G Ethernet Distance
50/100m at 850nm
800G Ethernet Distance
50m at 850nm
Glass Fiber
Bend Insensitive Fiber
Polarity
Crossover
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥27/45dB (UPC/APC)
Cable Jacket
Plenum (OFNP)
Minimum Bend Radius
7.5mm
Attenuation at 850nm
≤2.3dB/km
Attenuation at 1300nm
≤0.6dB/km
Cable Outside Diameter (OD)
3.0mm

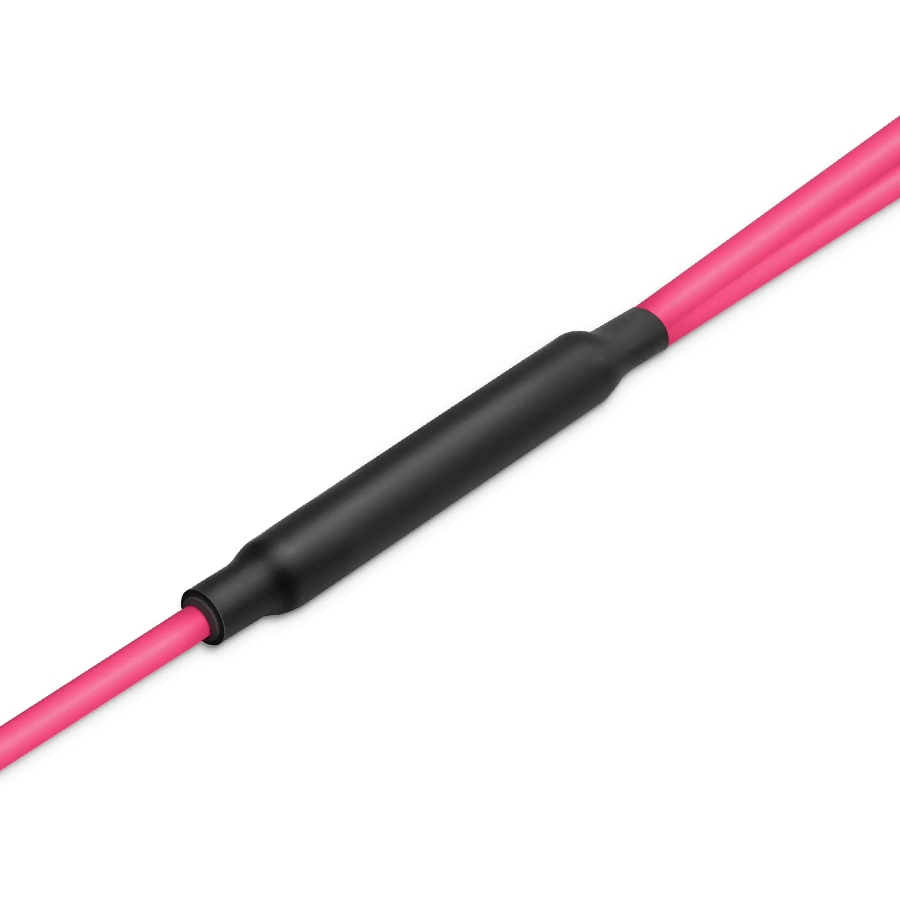

Breakout Length
0.5m
Installation Tensile Load
66N
Tensile Strength
60/120N (Long/Short Term)
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)
