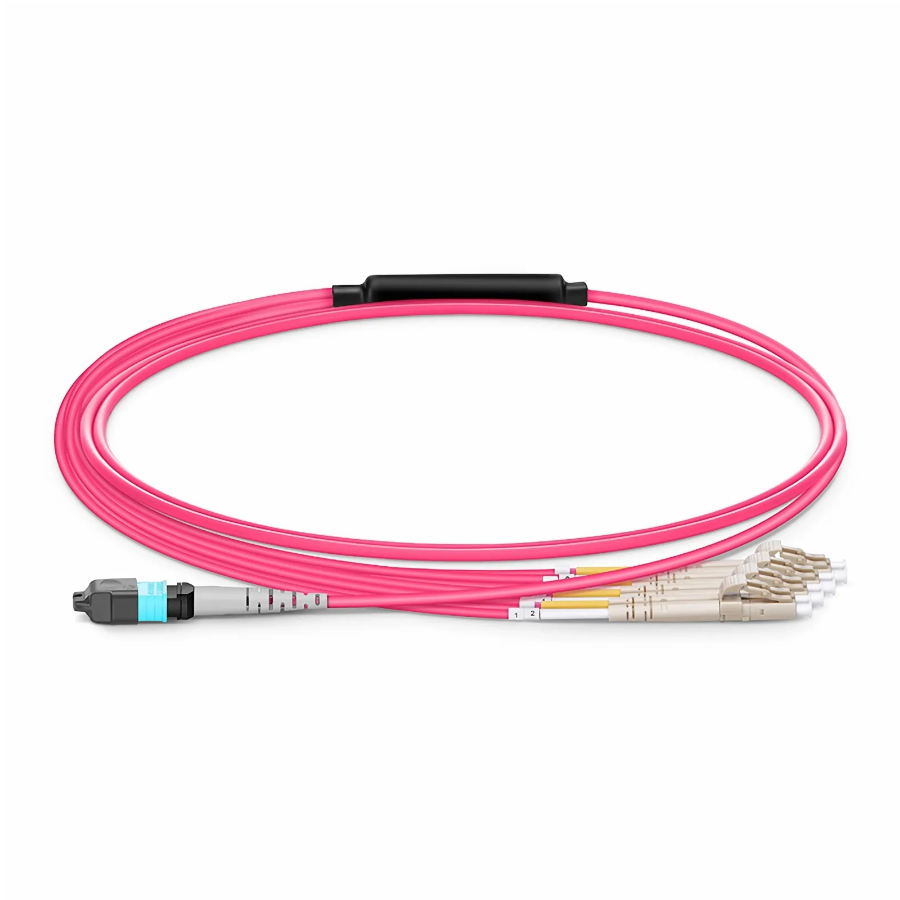

MPO-12 APC to 4×LC UPC Breakout Cable,8 Fiber OM4

MPO Connector with Optimal 0.35dB Low IL
Bend Insensitive Fiber with 7.5mm Min. Bend Radius
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Aggregating 4 LC Duplex into an MTP®-8 to Save Space and Network Reliability
Support from 10/25G to 40/100G Migration, Simplify the Network Upgrade
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
Connector Gender:
Cable Polarity:
Cable Length:
Online Inquiry
Product Details

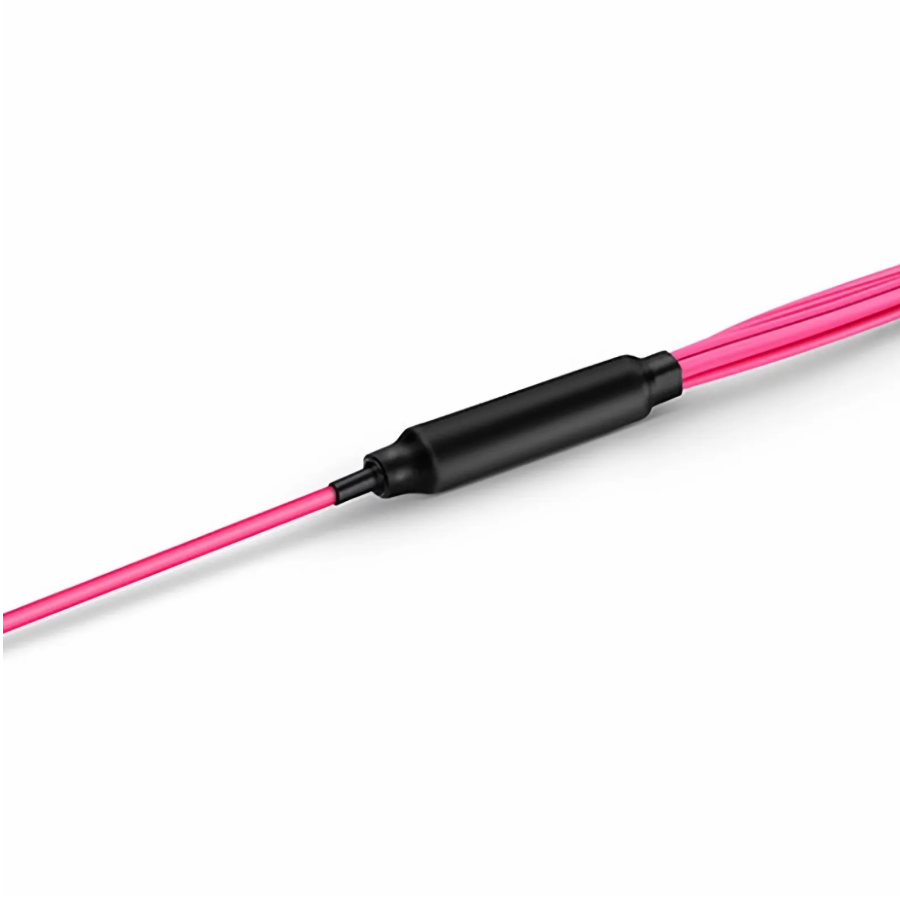

The MPO harnesses provide breakout from MPO-8 connectors to 4 LC duplex connectors, whose assemblies are factory terminated and tested to deliver verified optical performance and reliability for improved network integrity.

MPO-LC cable is designed for migration from duplex-based applications (10/25G Ethernet) to parallel optics-based applications (40/100G Ethernet). It is widely used in high-density cabling applications in data centers, local area networks, equipment rooms, and telecommunication rooms, among others.

Specifications

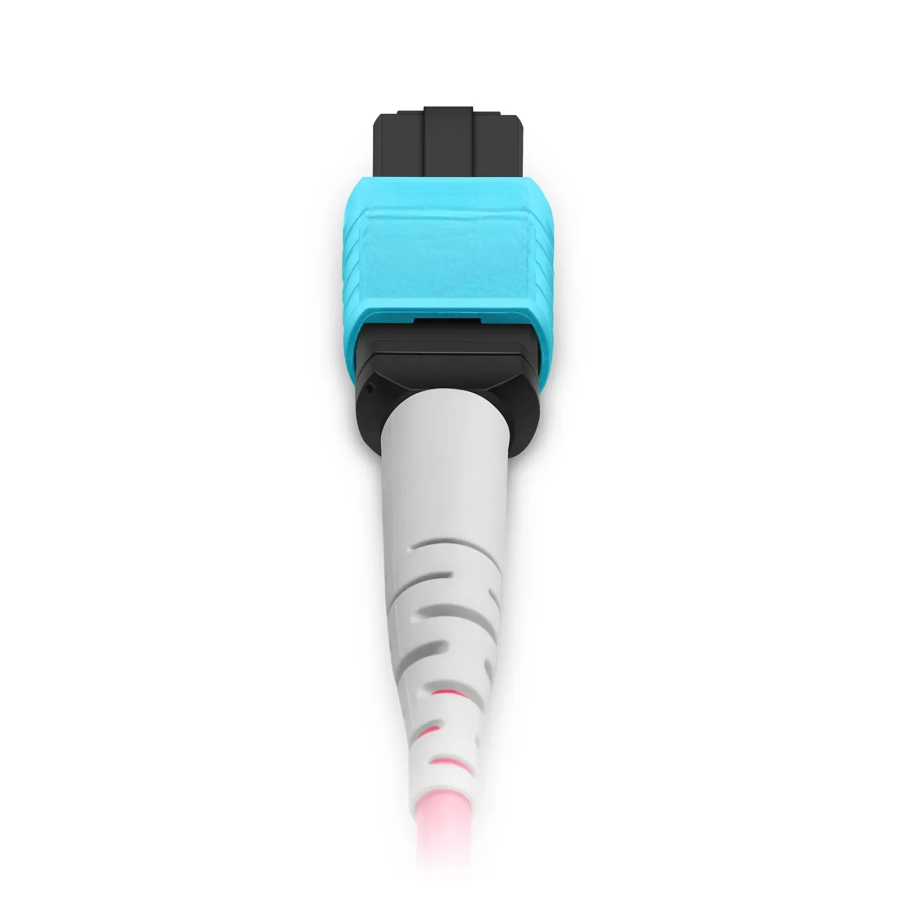

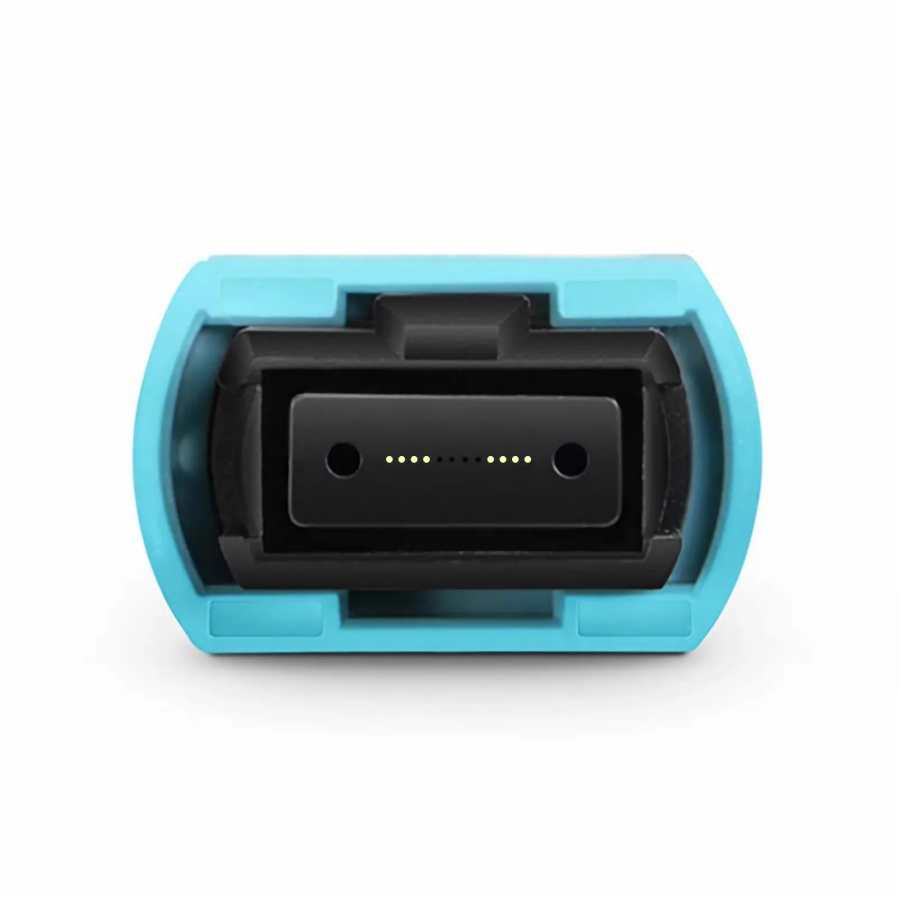

Connector A
MPO Elite Female (Non-Pinned)

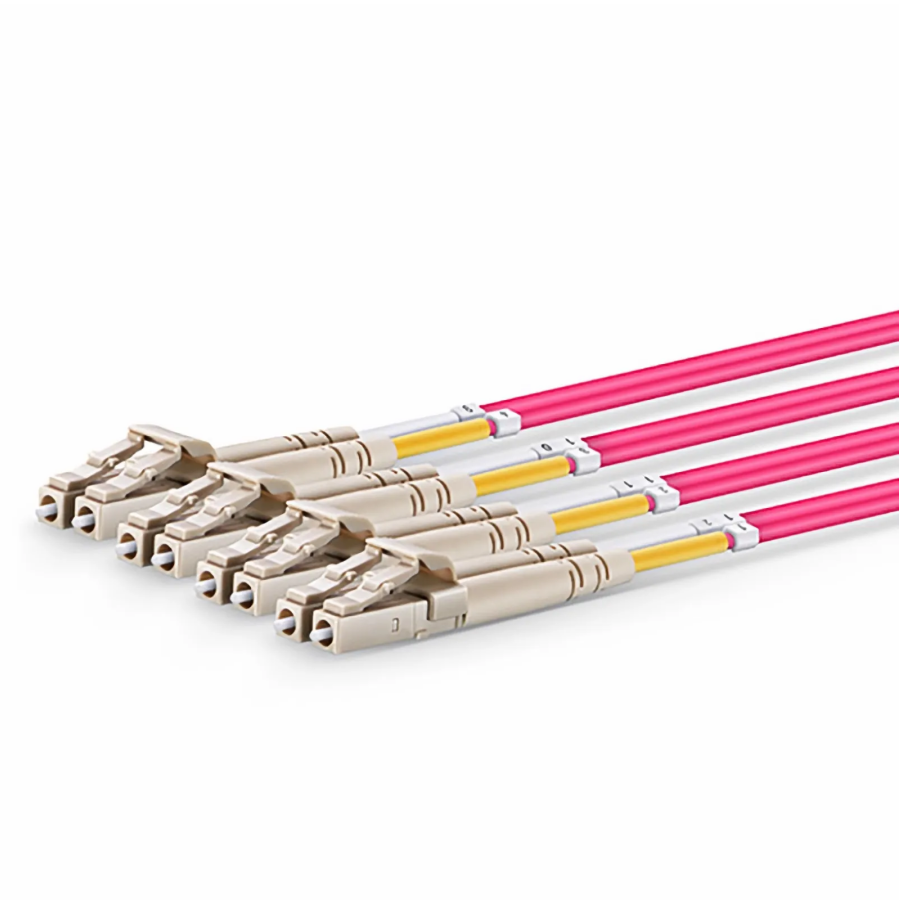

Connector B
LC Duplex
Fiber Mode
OM4 50/125μm
Wavelength
850/1300nm
Glass Fiber
Bend Insensitive Fiber
Minimum Bend Radius
7.5mm
Polish Type
UPC to UPC
Polarity
Type B
Cable Jacket
Plenum (OFNP)
Cable Outside Diameter (OD)
3.0mm
Breakout Outside Diameter (OD)
2.0mm
Breakout Length
0.5m
MTP Connector IL
≤0.35dB (0.15dB Typ.)
MTP Connector RL
≥20dB
LC Connector IL
≤0.2dB
LC Connector RL
≥30dB
Attenuation at 850nm
≤2.3dB/km
Attenuation at 1300nm
≤0.6dB/km
Long-term Tensile Load
80N
Short-term Tensile Load
240N
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)
